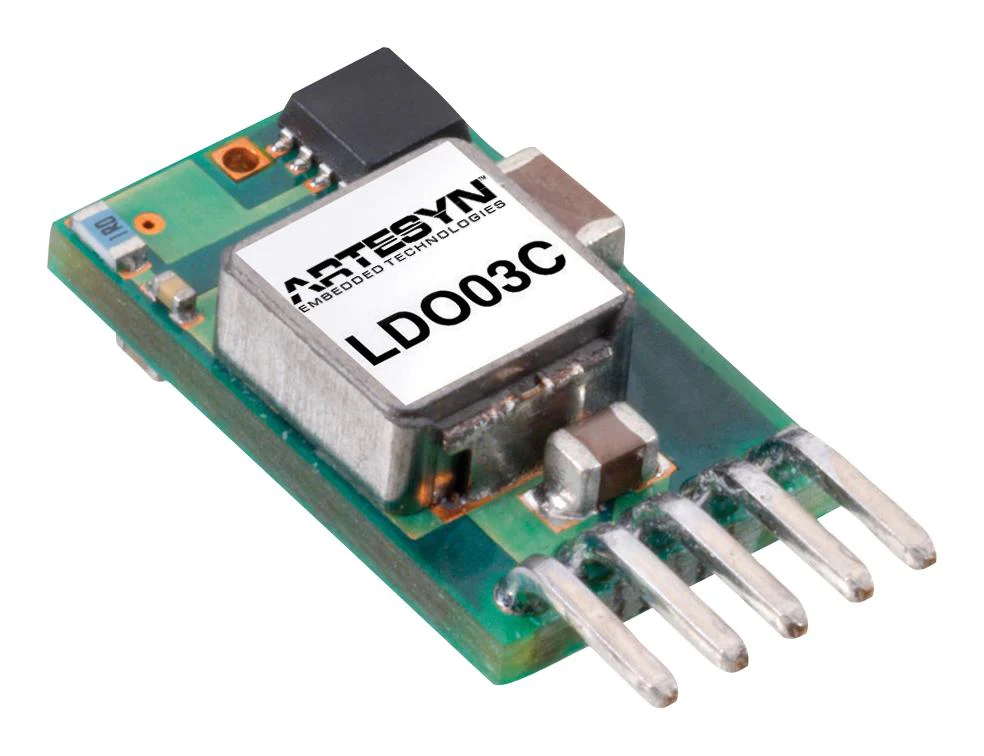

Artesyn Embedded Technologies LDO03C-005W05-VJ DC-DC Converter 0.59V TO 5.1V Module
This is a DC-DC CONVERTER, 0.59V TO 5.1V, MODULE product from ARTESYN EMBEDDED TECHNOLOGIES with the model number LDO03C-005W05-VJ
Product details
| Output Power Max | 15W |
| Output Voltage Min | 590mV |
| Output Voltage Max | 5.1V |
| Output Current Max | 3A |
| DC / DC Converter Output Type | Adjustable |
| DC / DC Converter Type | - |
| Input Voltage DC Min | 3V |
| Input Voltage DC Max | 13.8V |
| Approvals & Standards | IEC, TUV, UL |
| Height | 15.49mm |
| Depth | 9.4mm |
| Width | 5.37mm |
| Product Range | LDO03C Series |
| RoHS Phthalates Compliant | To Be Advised |
Other details
| Brand | ARTESYN EMBEDDED TECHNOLOGIES |
| Part Number | LDO03C-005W05-VJ |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
