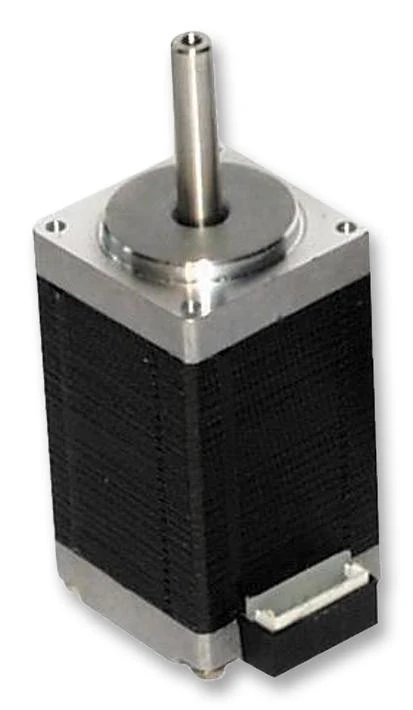

ASTROSYN MY3002 Stepper Motor, Unipolar, 7 N-cm, 950 mA, Two, 3.4 ohm, 1.6 mH
- High torque in compact size
- Unipolar and bipolar operation
- Light weight
- Low noise
- Low inertia rotor
- High accuracy 1.8� step angle
- Frame size: 28x28mm
Product details
| Inertia | 12g-cm� |
| Coil Type | Unipolar |
| Resistance | 3.4ohm |
| Current Rating | 950mA |
| Torque Max | 7N-cm |
| Product Range | - |
| No. of Phases | Two |
| Inductance | 1.6mH |
Other details
| Brand | ASTROSYN |
| Part Number | MY3002 |
| Quantity | Each |
| Technical Data Sheet EN |  |
