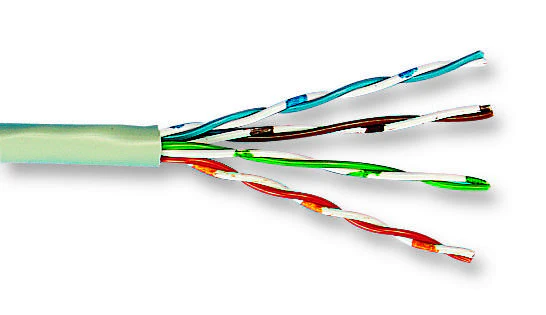

BELDEN 1583E Unshielded Networking Cable, Per M, Cat5e, 4 Pair, 24 AWG, 0.2 mm², 1000 ft, 305 m
The 1583E is a 1000ft 4-pair unshielded Cat5 enhanced UTP Cable with 24AWG solid bare copper conductor, polyethylene (PE) insulation and grey flame-retardant PVC jacket. This cable supports current and future category 5 enhanced applications, such as 10 Base-T, 100 Base-T, 1000 Base-T (Gigabit Ethernet), FDDI and ATM.
- 50nF/km Nominal mutual capacitance at 1kHz
- 93.5R/km Maximum conductor DC resistance
- 100 ±15R Impedance (1 to 100MHz)
Applications
Communications & Networking
Product details
| Reel Length (Metric) | 305m |
| Conductor Material | Copper |
| Jacket Material | PVC |
| External Diameter | 5mm |
| No. of Pairs | 4 Pair |
| Voltage Rating | 48V |
| Reel Length (Imperial) | 1000ft |
| LAN Category | Cat5e |
| Product Range | - |
| Wire Gauge | 24AWG |
| Jacket Colour | Grey |
| No. of Max Strands x Strand Size | Solid |
| Conductor Area CSA | 0.2mm² |
Other details
| Brand | BELDEN |
| Part Number | 1583E |
| Quantity | 1 Metre |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
