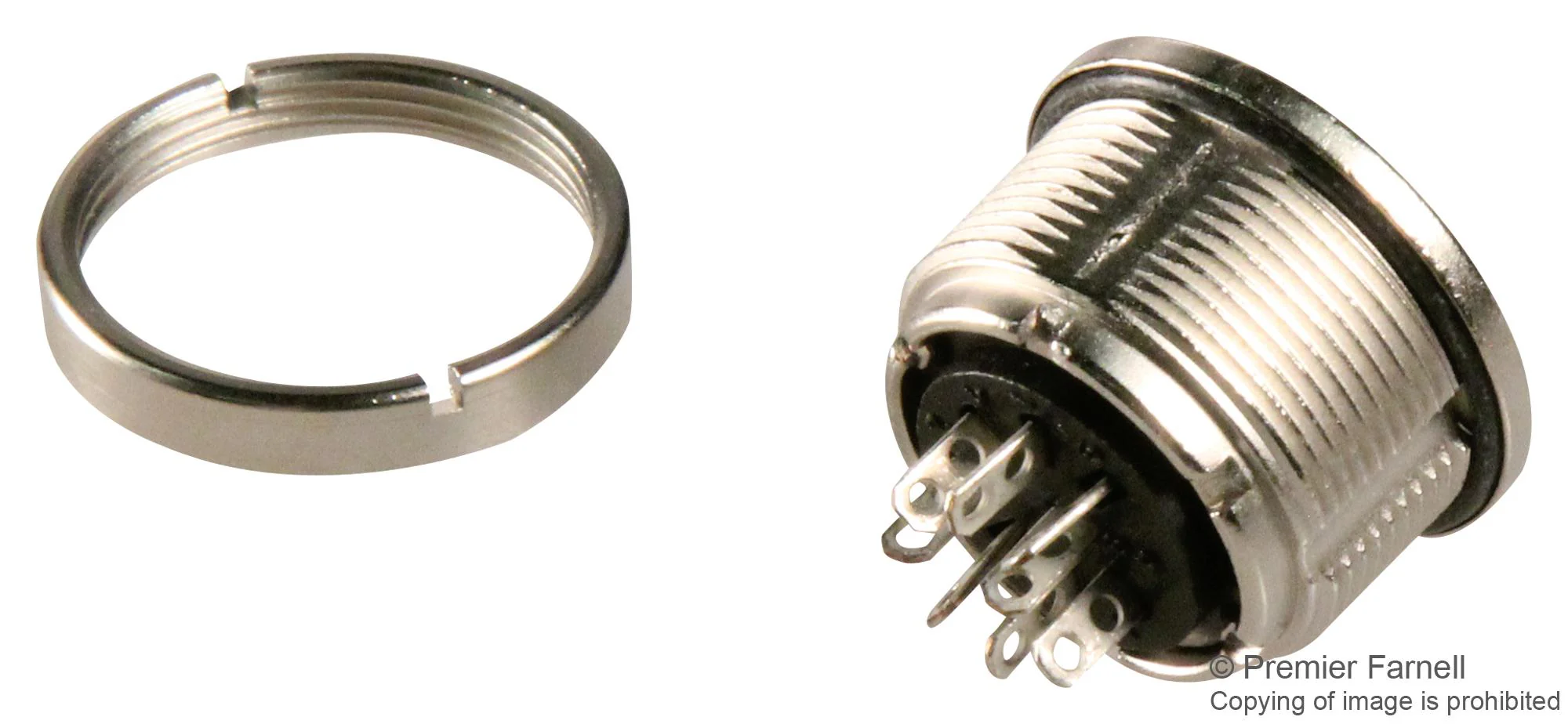

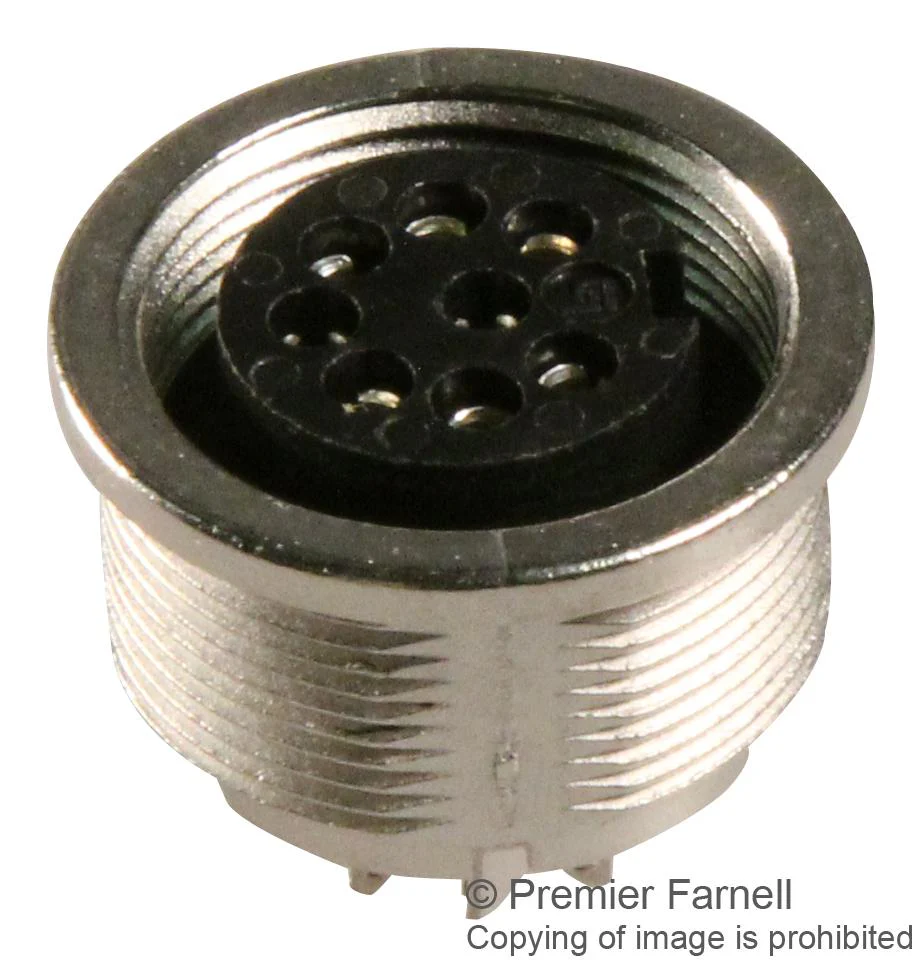

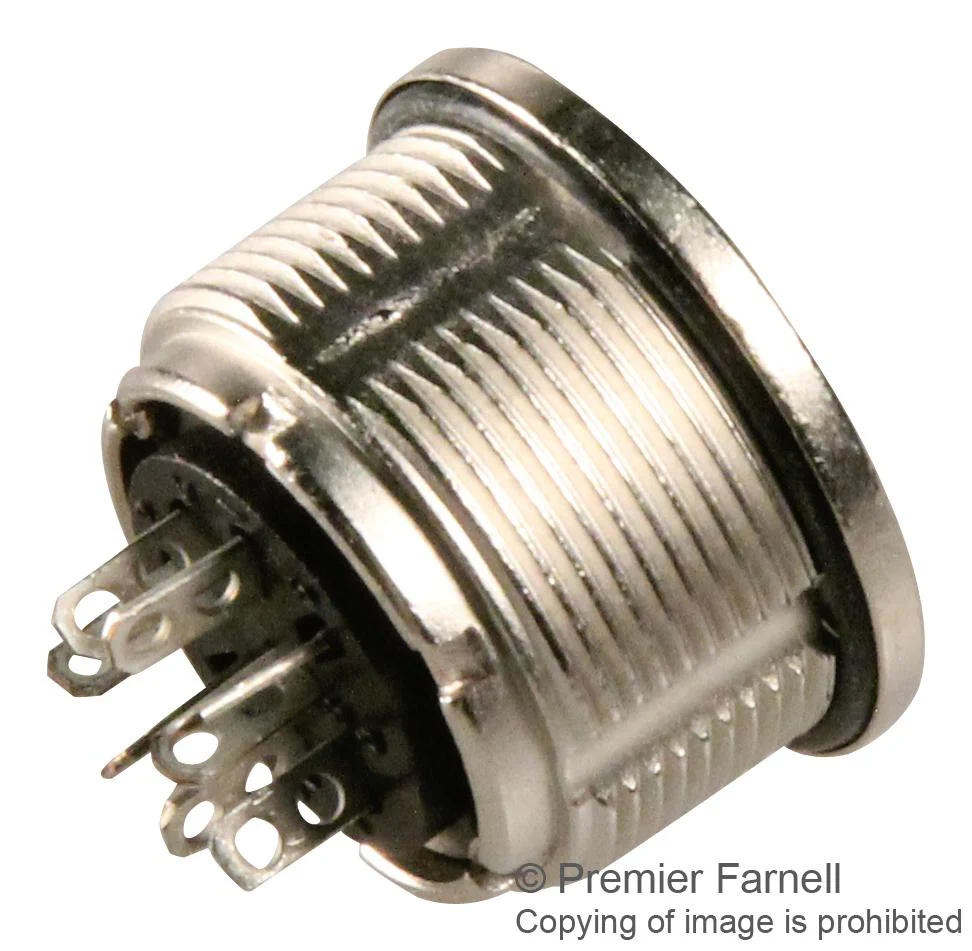

Binder 09 0174 00 08 09 08 Circular Connector 723 Series Panel Mount Receptacle 8 Contacts Solder Socket Brass Body
The 09 0174 00 08 is a 8-contact 60V/5A shielded straight subminiature female Circular Connector with silver-plated bronze contacts, PBT (UL 94 V-0) contact body, nickel-plated zinc die-cast housing. The 723 series receptacle with M16 screw locking system, solder termination, front mounting. It accepts 20AWG (0.75mm²) wire. It provides excellent EMI shielding via a shielding ring or cable clamp and internal strain relief.
- 500V Rated impulse voltage
- <=5mR Volume resistivity
- >500 mating cycles Mechanical operation
- IP67 Protection rating
Industrial
Other details
| Brand | BINDER |
| Part Number | 09 0174 00 08 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
