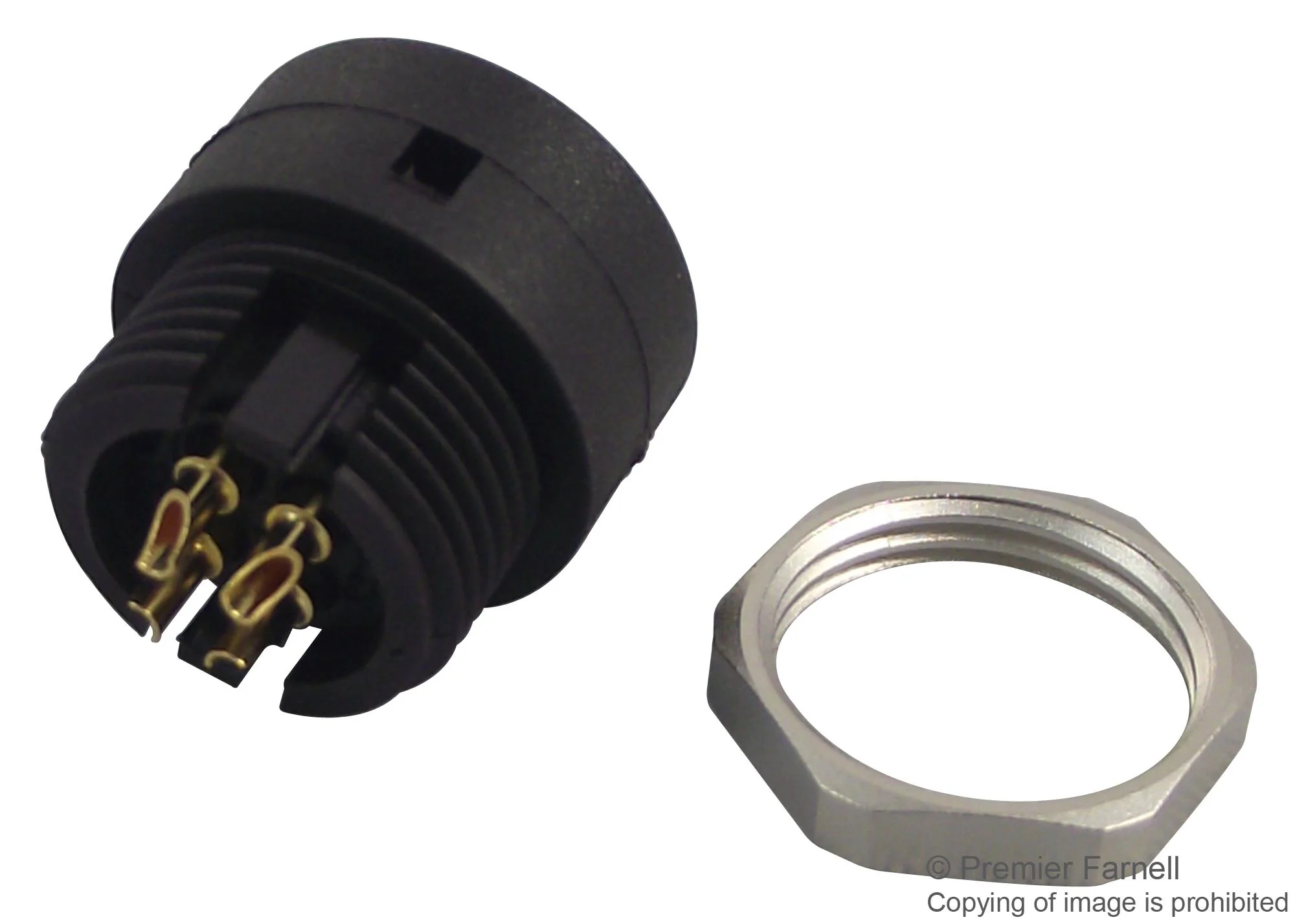

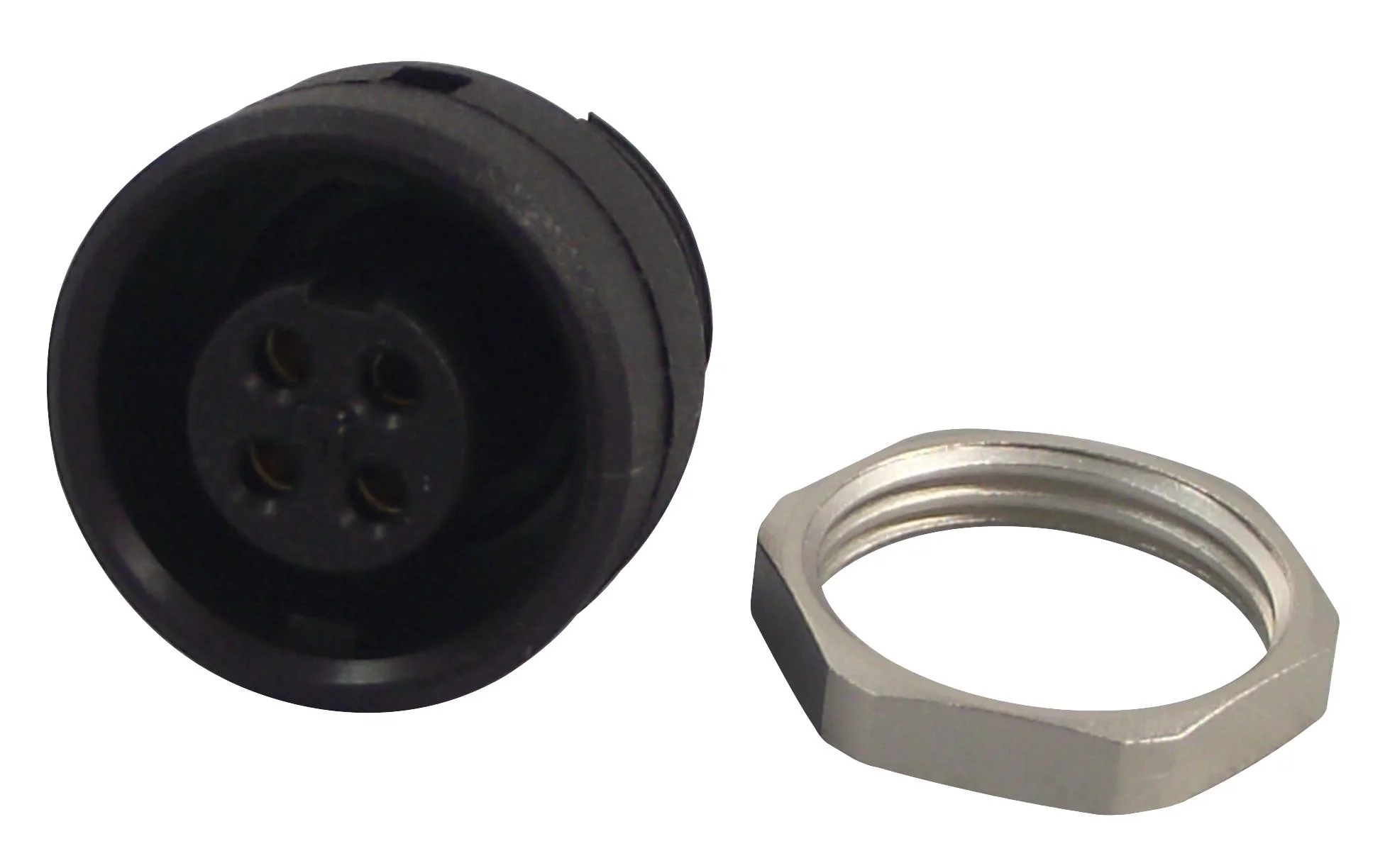

Binder 09 0982 00 04 09 04 Circular Connector 710 Series Panel Mount Receptacle 4 Contacts Solder Socket
The 09 0982 00 04 is a 4-contact 125V/3A unshielded straight subminiature female Circular Connector with gold-plated bronze contacts, PA (UL94V-0) contact body, PA (UL94 HB) housing. The 710 series receptacle with solder termination, front mounting style. It accepts 24AWG (0.25mm²) wire. The reliable and secure bayonet locking system is easy to operate and can withstand high vibrations. Housing outer diameter is only 12mm. It has a strain relief for added strength.
- 1500V Rated impulse voltage
- <=3mR Volume resistivity
- >500 mating cycles Mechanical operation
- IP40 Protection rating
Portable Devices, Consumer Electronics, Medical, Industrial
Other details
| Brand | BINDER |
| Part Number | 09 0982 00 04 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$9.93
