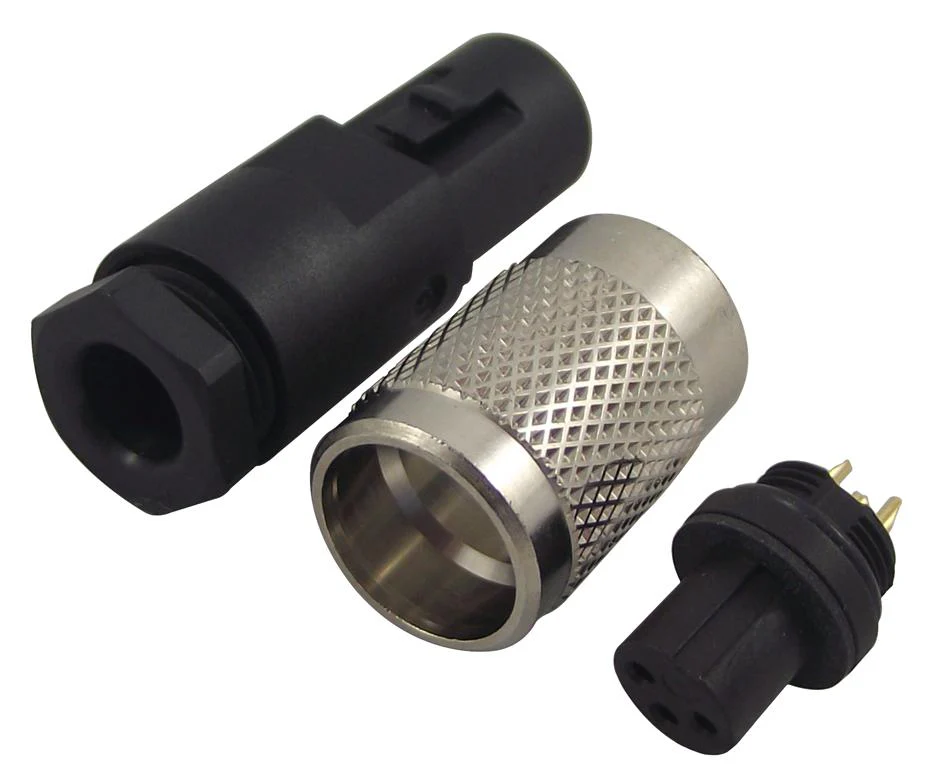

Binder 99 0406 00 03 Circular Connector 712 Series Cable Mount Receptacle 3 Contacts Solder Socket
The 99 0406 00 03 is a 3-contact 125V/4A unshielded straight subminiature female Circular Connector with gold-plated bronze contacts, PA (UL94V-0) contact body and PA (UL94V-0) housing. The 712 series plug with M9 screw locking system, solder termination, cable mounting style. It accepts 24AWG (0.25mm²) wire, 3 to 4mm cable outlet.
- 1500V Rated impulse voltage
- <=3mR Volume resistivity
- >500 mating cycles Mechanical operation
- IP67 Protection rating
Industrial
Other details
| Brand | BINDER |
| Part Number | 99 0406 00 03 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$6.34
Original: $21.14
-70%Binder 99 0406 00 03 Circular Connector 712 Series Cable Mount Receptacle 3 Contacts Solder Socket—
$21.14
$6.34Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The 99 0406 00 03 is a 3-contact 125V/4A unshielded straight subminiature female Circular Connector with gold-plated bronze contacts, PA (UL94V-0) contact body and PA (UL94V-0) housing. The 712 series plug with M9 screw locking system, solder termination, cable mounting style. It accepts 24AWG (0.25mm²) wire, 3 to 4mm cable outlet.
- 1500V Rated impulse voltage
- <=3mR Volume resistivity
- >500 mating cycles Mechanical operation
- IP67 Protection rating
Industrial
Other details
| Brand | BINDER |
| Part Number | 99 0406 00 03 |
| Quantity | Each |
| Technical Data Sheet EN | |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
