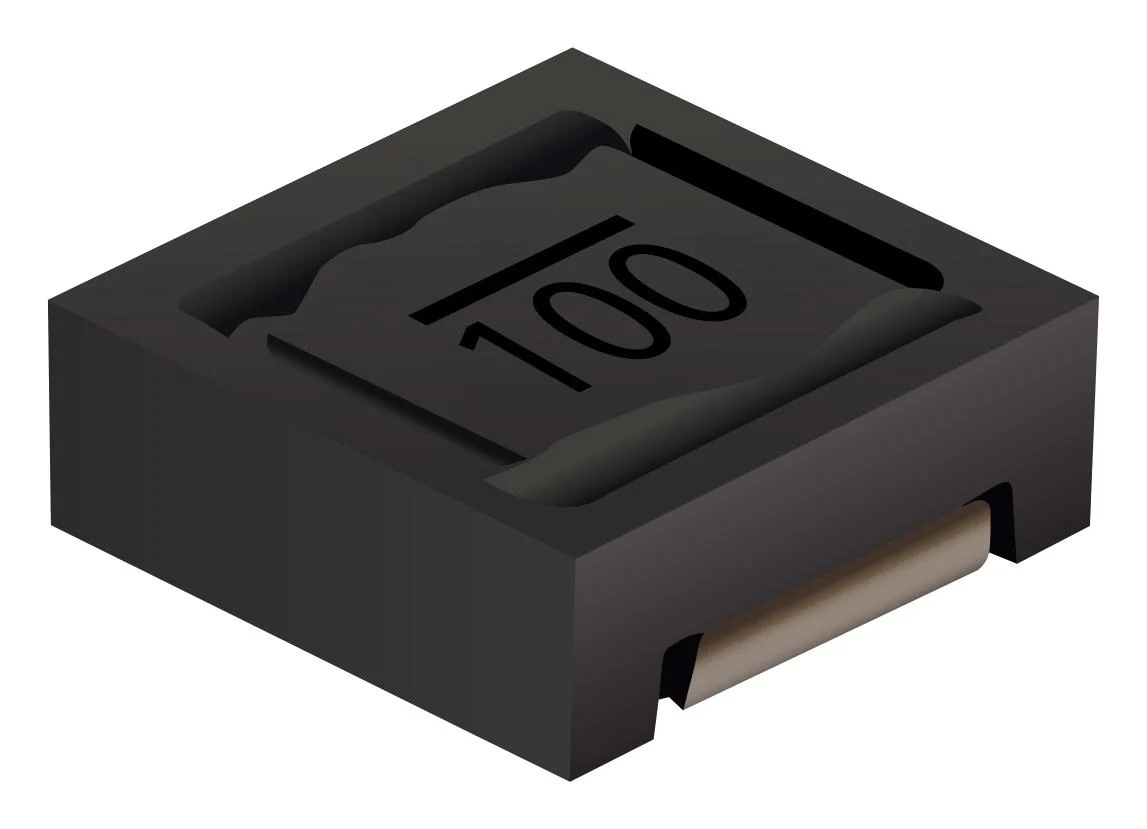

BOURNS SRR4818A-120M Power Inductor (SMD), 12 µH, 1.6 A, 950 mA, SRR4818A Series, 4.8mm x 4.8mm x 1.8mm, Shielded

This is a Power Inductor (SMD), 12 µH, 1.6 A, 950 mA, SRR4818A Series, 4.8mm x 4.8mm x 1.8mm, Shielded product from BOURNS with the model number SRR4818A-120M

Product details

Inductance	12µH
RMS Current (Irms)	1.6A
Saturation Current (Isat)	950mA
Product Range	SRR4818A Series
Power Inductor Case	4.8mm x 4.8mm x 1.8mm
Inductor Construction	Shielded
DC Resistance Max	0.17ohm
Inductance Tolerance	± 20%
Packaging	Cut Tape

Other details

Brand	BOURNS
Part Number	SRR4818A-120M
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
