Camdenboss CTB9209/5 CTB9209/5 Pluggable Terminal Block 5.08 mm 5 Ways 24AWG to 12AWG 2.5 mm² Screw 12 A

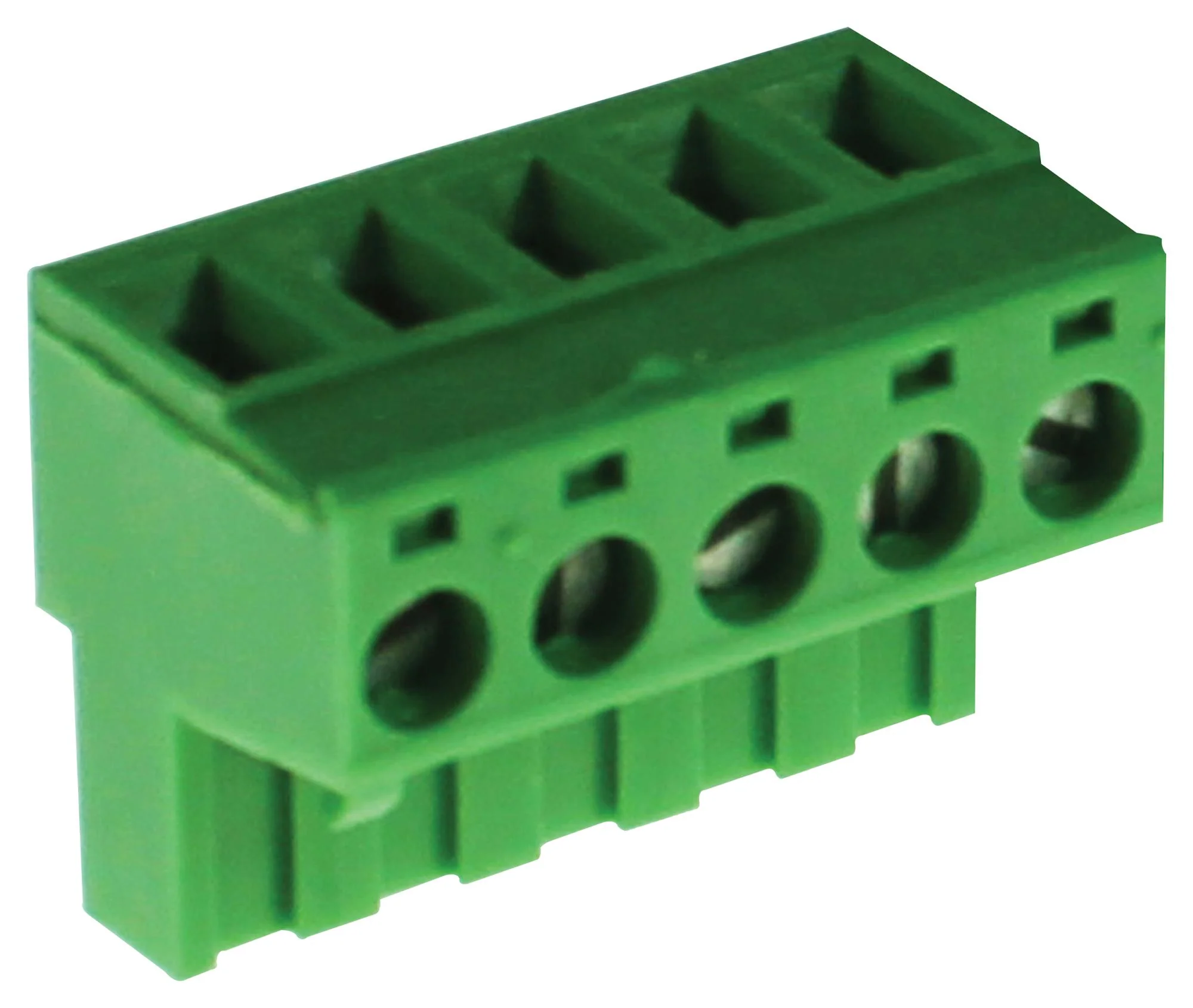

The CTB9209/5 from Camdenboss is a 5 pole, female pluggable rising clamp terminal block with 5.08mm pin spacing. This professional rising clamp terminal block is suitable for wire size ranging from 22AWG to 14AWG.
- Rated voltage of 300V and rated current of 15A
- Dimension is 25.40mm x 18.10mm x 15mm (L x W x H)
- Polyamide (PA66) moulded material in green colour housing
- Open and closed header, polarised moulding and guided pin alignment
- Tin plated brass terminal
- Nickel plated M2.5 steel captive screws with 0.4Nm torque
- Working temperature range from -40°C to 105°C
- Horizontal female plug style
- Flammability rating meets UL94 V-0
- cULus approved
Industrial
Other details
| Brand | CAMDENBOSS |
| Part Number | CTB9209/5 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$0.52
Original: $1.72
-70%Camdenboss CTB9209/5 CTB9209/5 Pluggable Terminal Block 5.08 mm 5 Ways 24AWG to 12AWG 2.5 mm² Screw 12 A—
$1.72
$0.52Product Information
