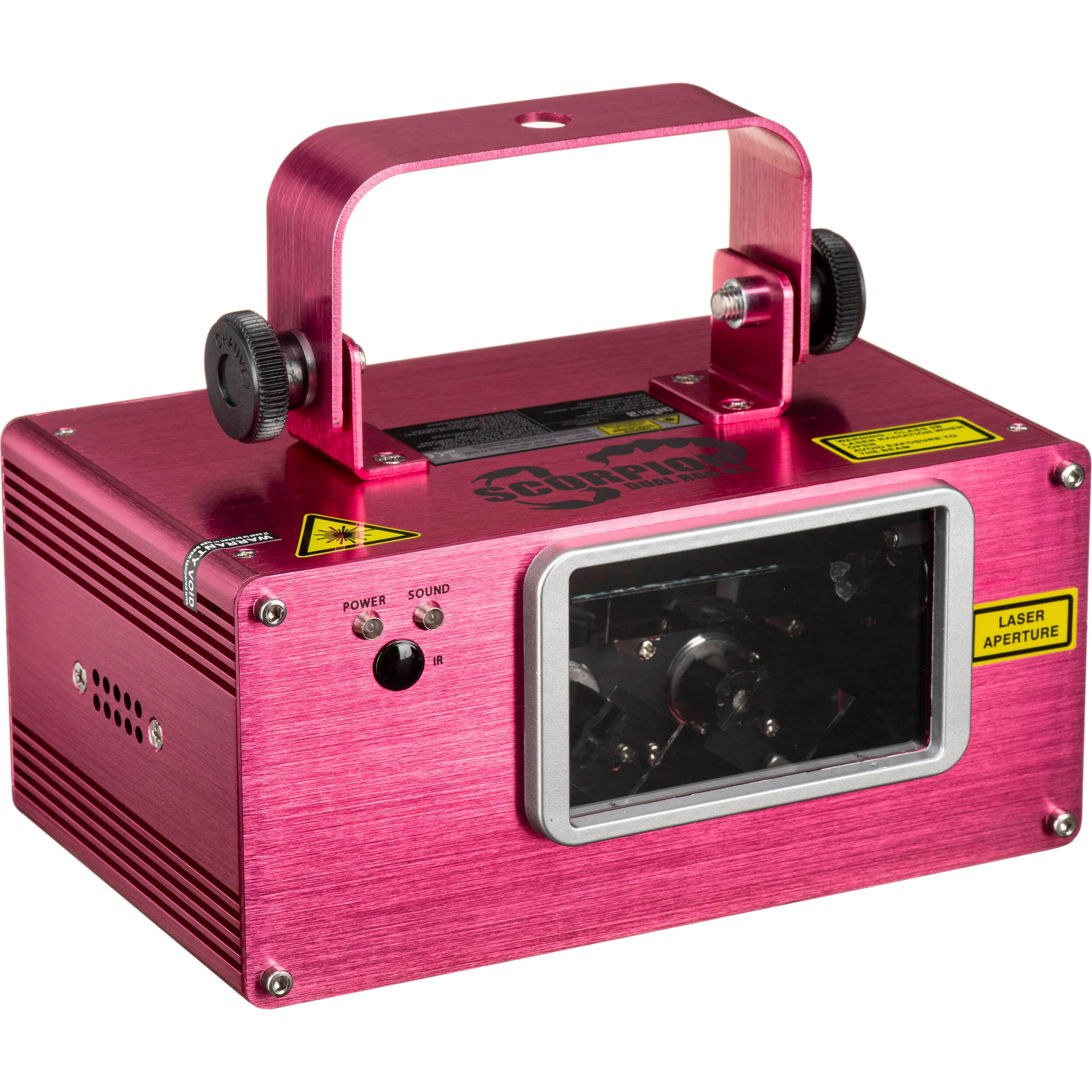

CHAUVET DJ Scorpion Dual RGB ILS FAT BEAM Aerial Effect Laser
CHAUVET DJ Scorpion Dual RGB ILS Overview
The Chauvet DJ Scorpion Dual RGB is a dual red, green, and blue Fat Beam aerial-effects laser that is well suited for applications with fog or haze effects, and for use in live stage, theater, or DJ setups. The dual-mirror output works well as a centerpiece or side accent when used in pairs. Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types.
The Scorpion Dual RGB includes 32 built-in patterns, including the popular Laser Sky effect and can generate customized and perpetually changing laser shows using programmable pan, tilt, and zoom, with separate X, Y, and Z rolling effects and scan/speed adjustment. The laser offers automatic, master/slave, and sound-activated modes for easy operation, while the manual 10-channel DMX mode provides custom programming for the more accurate and controlled show. The Chauvet DJ Scorpion Dual RGB includes a hanging bracket (with M12 mounting hole) and ships with a power cord.
- Dual RGB FAT BEAM aerial effect laser
- Works well with fog or haze
- D-Fi USB compatibility for wireless master/slave or DMX control
- Create remarkable color combinations by mixing red, green, and blue laser diodes
- Dual mirror output makes a great centerpiece or side accent in pairs
- 32 built-in patterns, including the popular Laser Sky effect
- Wireless control using the optional IRC-6 remote
- Generate customized and ever-changing laser shows using programmable pan, tilt, and zoom effects with separate X, Y, and Z rolling effects and scan-speed adjustment
- Fully FDA compliant, variance-free and ready to use right out of the box
- Easily operate in automatic, master/slave, manual, or sound-activated modes
- Compatible with the CHS-40 VIP gear bag
In the Box
- CHAUVET DJ Scorpion Dual RGB ILS FAT BEAM Aerial Effect Laser
- Power Cord
CHAUVET DJ Scorpion Dual RGB ILS Specs
| Fixture Type | Special Design |
| Light Source | 3 x Laser Diode |
| Colors | Red Green Blue |
| Laser | Red: 638 nm / 30 mW Green: 520 nm / 20 mW Blue: 450 nm / 50 mW |
| Coverage Angle | 36° |
| Zoom Adjustment | 1 to 29° |
| Dimming | None |
| Operating Modes | Automatic, Primary/Secondary, Sound-Active |
| Macros / Programs | Laser Pattern |
| Effects | Shapes |
| Strobe Rate | 0 to 27 Hz |
| Gobos | None |
| Tilt Ranges | 30° |
| Pan Ranges | 30° |
| Control Protocols | DMX512 |
| DMX Channel Modes | 1 Mode(s): 10-Channel |
| Display / Controls | LED / 4-Button |
| Remote Control | IR Remote (with Optional Equipment) |
| Inputs/Outputs | 1 x XLR 3-Pin DMX Input 1 x XLR 3-Pin DMX Output |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1 x IEC Output: 1 x Edison Plug Type: NEMA 5-15 |
| Fuse | T 3.15 A 250 V |
| Power / Current Consumption | 120 VAC, 60 Hz: 20 W / 0.3 A 230 VAC, 50 Hz: 19 W / 0.2 A |
| Power Linking | 27 Units at 120 VAC 48 Units at 230 VAC |
| IP Rating | None |
| Operating Temperature | 59 to 95°F / 15 to 35°C |
| Mounting | Mounting Bracket |
| Included Accessories | 1 x Power Cable |
| Exterior Color | Pink |
| Cooling | Fan |
| Certifications | CE, RoHS *as per Manufacturer |
| Dimensions | 8.5 x 6.3 x 7" / 21.6 x 16.1 x 18 cm |
| Weight | 3.8 lb / 1.7 kg |
| Package Weight | 4.885 lb |
| Box Dimensions (LxWxH) | 11.3 x 8.1 x 7.2" |
