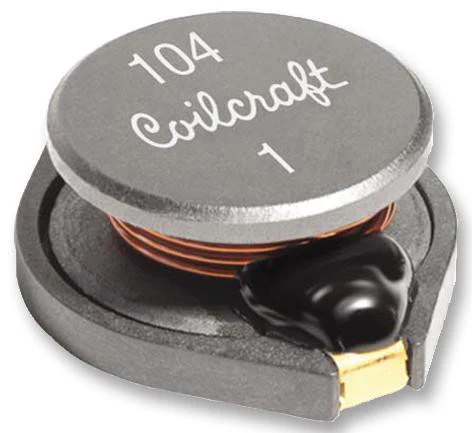

COILCRAFT DO5022P-104MLD Surface Mount Power Inductor, DO5022P Series, 100 �H, 1.8 A, 3 A, Unshielded, 0.19 ohm

This is a Surface Mount Power Inductor, DO5022P Series, 100 �H, 1.8 A, 3 A, Unshielded, 0.19 ohm product from COILCRAFT with the model number DO5022P-104MLD

Product details

Power Inductor Case	18.03mm x 15.24mm x 7.11mm
DC Resistance Max	0.19ohm
Saturation Current (Isat)	3A
Packaging	Cut Tape
Inductance Tolerance	� 20%
Product Range	DO5022P Series
RMS Current (Irms)	1.8A
Inductance	100�H
Inductor Construction	Unshielded

Other details

Brand	COILCRAFT
Part Number	DO5022P-104MLD
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
