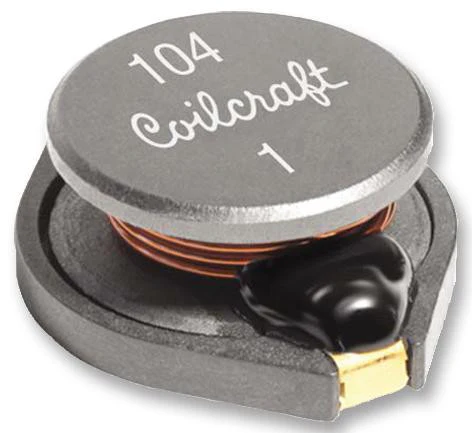

COILCRAFT DO5022P-683MLD Surface Mount Power Inductor, DO5022P Series, 68 �H, 2.3 A, 3.7 A, Unshielded, 0.13 ohm

This is a Surface Mount Power Inductor, DO5022P Series, 68 �H, 2.3 A, 3.7 A, Unshielded, 0.13 ohm product from COILCRAFT with the model number DO5022P-683MLD

Product details

Power Inductor Case	18.03mm x 15.24mm x 7.11mm
DC Resistance Max	0.13ohm
Saturation Current (Isat)	3.7A
Packaging	Cut Tape
Inductance Tolerance	� 20%
Product Range	DO5022P Series
RMS Current (Irms)	2.3A
Inductance	68�H
Inductor Construction	Unshielded

Other details

Brand	COILCRAFT
Part Number	DO5022P-683MLD
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
