COILCRAFT MSS1038-153MLC Surface Mount Power Inductor, MSS1038 Series, 15 µH, 3.8 A, 2.84 A, Shielded, 0.05 ohm
The MSS1038-153MLC is a surface mount shielded Power Inductor with ferrite core. This inductor features matte tin over nickel over copper terminations and is resistance to soldering heat maximum three 40 seconds reflows at +260°C, parts cooled to room temperature between cycles. This inductor also features moisture sensitivity level (MSL) of 1, failures in time (FIT)/mean time between failures (MTBF) is 38 per billion hours/26,315,789 hours, calculated per Telcordia SR-332 and only pure water or alcohol recommended for wash. DC current at which the inductance drops the specified amount from its value without current and Inductance tested at 100kHz, 0.1Vrms, 0Adc.
- Very low DCR and excellent current handling
Applications
Power Management, Automotive
Product details
| Power Inductor Case | 10.2mm x 10mm x 3.8mm |
| DC Resistance Max | 0.05ohm |
| Saturation Current (Isat) | 2.84A |
| Packaging | Cut Tape |
| Inductance Tolerance | ± 20% |
| Product Range | MSS1038 Series |
| RMS Current (Irms) | 3.8A |
| Inductance | 15µH |
| Inductor Construction | Shielded |
Other details
| Brand | COILCRAFT |
| Part Number | MSS1038-153MLC |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |

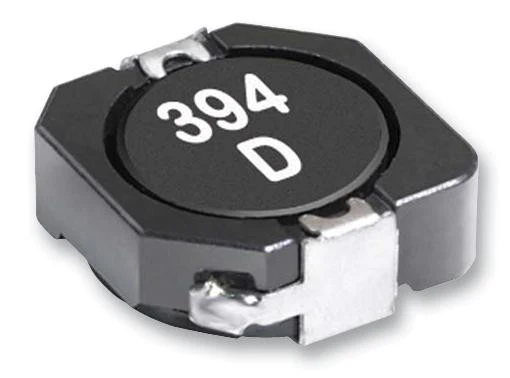

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
