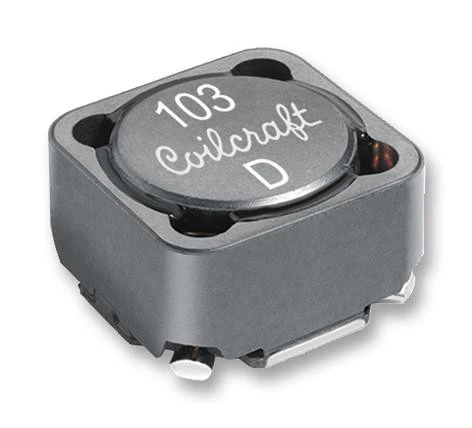

COILCRAFT MSS1583-104KEC Surface Mount Power Inductor, MSS1583 Series, 100 µH, 2.8 A, 3.9 A, Shielded, 0.103 ohm
This is a Surface Mount Power Inductor, MSS1583 Series, 100 µH, 2.8 A, 3.9 A, Shielded, 0.103 ohm product from COILCRAFT with the model number MSS1583-104KEC
Product details
| Product Range | MSS1583 Series |
| Inductance | 100µH |
| RMS Current (Irms) | 2.8A |
| Saturation Current (Isat) | 3.9A |
| Inductor Construction | Shielded |
| DC Resistance Max | 0.103ohm |
| Power Inductor Case | 14.8mm x 14.8mm x 8.6mm |
| Inductance Tolerance | ± 10% |
| Packaging | Cut Tape |
Other details
| Brand | COILCRAFT |
| Part Number | MSS1583-104KEC |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
