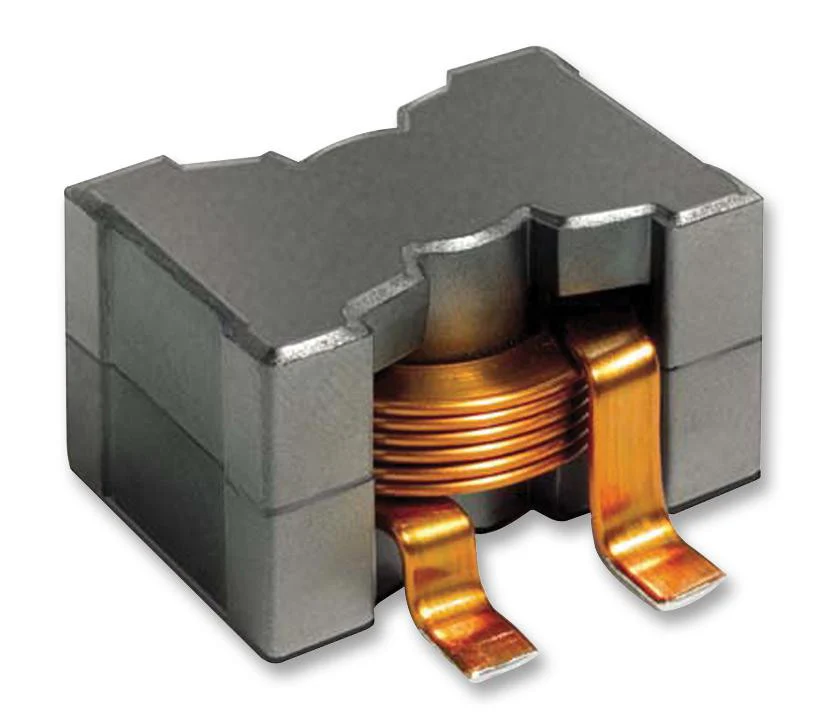

COILCRAFT SER2918H-223KL Surface Mount Power Inductor, SER2900 Series, 22 �H, 28 A, 12 A, Shielded, 2860 �ohm
The SER2918H-223KL is a Shielded Power Inductor with ferrite core, tin-silver-plated copper leads, gold-plated over nickel phosphor bronze base pad. Current handling to >100A. Third mounting pad for greater stability and board adhesion. Resistance to soldering heat maximum three 40 second reflows at +260�C, parts cooled to room temperature between cycles.
- Extremely low DC resistance
- -40 to 85�C Operating temperature
Applications
Power Management, Automotive
Product details
| Power Inductor Case | 27.9mm x 19.8mm x 15.36mm |
| DC Resistance Max | 0.00286ohm |
| Saturation Current (Isat) | 12A |
| Packaging | Each |
| Inductance Tolerance | � 10% |
| Product Range | SER2900 Series |
| RMS Current (Irms) | 28A |
| Inductance | 22�H |
| Inductor Construction | Shielded |
Other details
| Brand | COILCRAFT |
| Part Number | SER2918H-223KL |
| Quantity | Each |
| Technical Data Sheet EN |  |
