computar E5228KRW M12 Mount 5.2mm 4K IR Board Lens

Product image 1

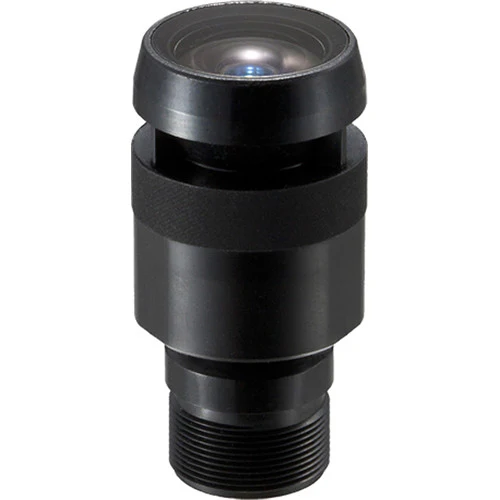

computar E5228KRW M12 Mount 5.2mm 4K IR Board Lens

computar E5228KRW Overview

The E5228KRW M12 Mount 5.2mm 4K IR Board Lens from computar is designed for cameras over 8MP with 1/1.8" format sensors. The lens has a 78.6° horizontal field of view and is IR corrected.

Compatible with cameras over 8MP
True day/night
Stereo Graphic projection
IR corrected
UPC: 781904053094

In the Box

  • computar E5228KRW M12 Mount 5.2mm 4K IR Board Lens
  • Limited 3-Year Manufacturer Warranty

    computar E5228KRW Specs

    Imager Size
    1/1.8"
    Mount Type
    M12 P=0.5 mm
    Focal Length
    5.2mm
    Back Focal Length
    7.0mm
    Image Format
    Maximum 7.1 x 5.4 mm (Ø8.9 mm)
    Aperture
    f/2.8
    Maximum Aperture Ratio
    1:2.8
    Effective Lens Aperture
    Front: Ø13.4 mm
    Rear: Ø 7.7 mm
    Field of View
    1/1.8"
    Diagonal: 100.4°
    Horizontal: 78.6°
    Vertical: 58.2°

    1/2"
    Diagonal: 89°
    Horizontal: 70.1°
    Vertical: 52°

    1/1.9" (17:9) 7.6 x 4mm
    Diagonal: 96°
    Horizontal: 83.9°
    Vertical: 43.1°

    1/3"
    Diagonal: 65.5°
    Horizontal: 52°
    Vertical: 38.8°

    1/2.3" (16:9) 6.4 x 3.6mm
    Diagonal: 79.5°
    Horizontal: 69.8°
    Vertical: 36.3°
    Dimensions
    0.6 x 1.36" (17 x 34.6 mm)
    Weight
    0.3 oz (9 g)
    Packaging Info
    Package Weight
    0.25 lb
    Box Dimensions (LxWxH)
    0.7 x 0.5 x 0.4"
