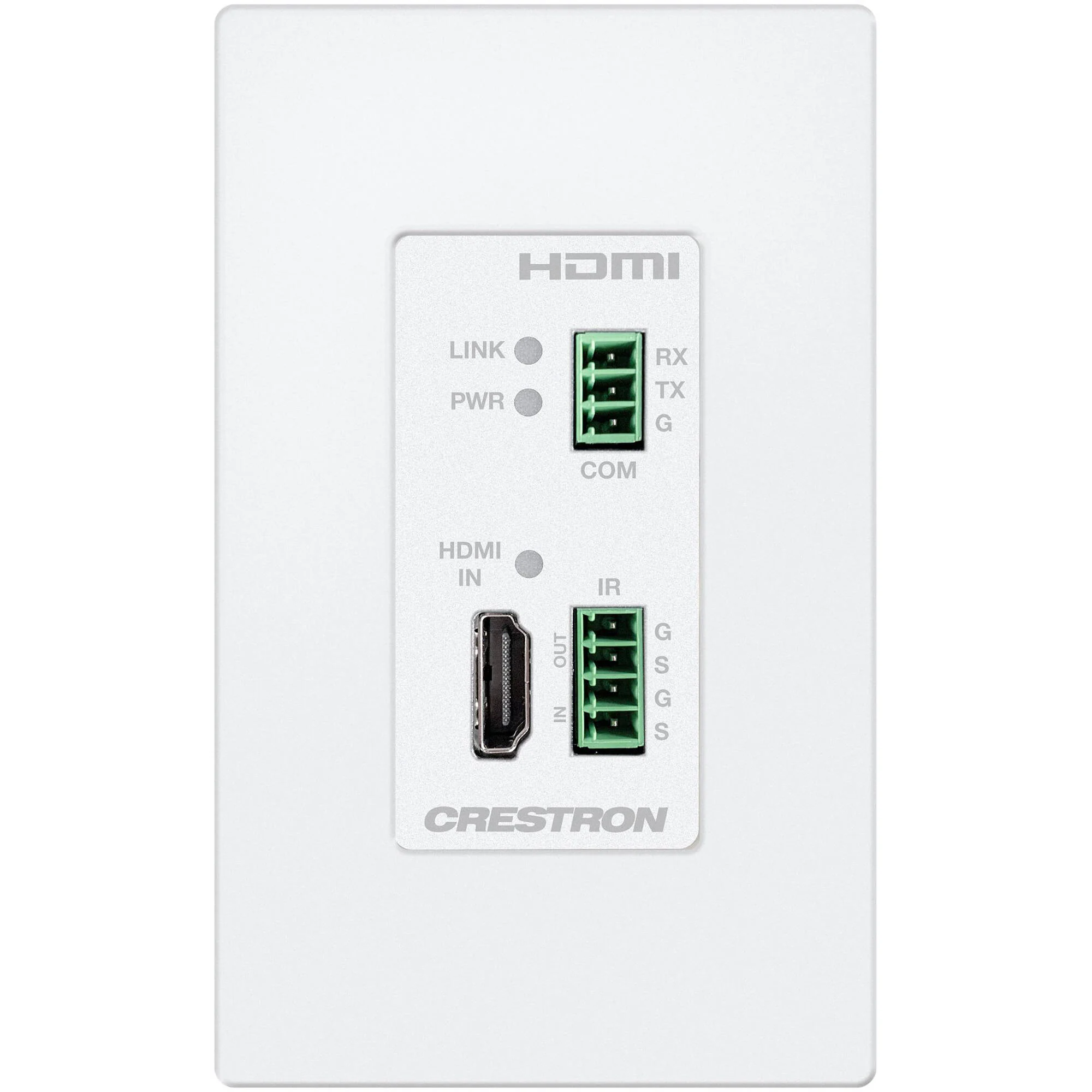

Crestron DM Essentials 4K60 Wall Plate Transmitter for Signal Extension (White)
Crestron DM Essentials 4K60 Wall Plate Transm... Overview
Create point-to-point video signal extension with this Crestron DM Essentials 4K60 Wall Plate Transmitter. The transmitter is designed to interoperate with a DMPS Essentials switcher or DM Essentials receiver for the transmission of HDMI, RS-232, and IR video signals up to 4K60 resolution with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision formats are also supported.
To connect the transmitter to a compatible switcher or receiver, a separately available Cat 5e or higher twisted-pair cable is required, carrying 4K footage up to 130' and 2K or 1080p footage up to 230'. Mounting directly into a 1-gang electrical wall box, this transmitter keeps wires out of sight while sending signals to and receiving power from a connected surface-mountable receiver or switcher.
Note: If used with a wall plate receiver, a separately available PW-2407WUL Power Pack is required.
Items Included
- Crestron DM Essentials 4K60 Wall Plate Transmitter for Signal Extension (White)
- Limited 3-Year Manufacturer Warranty
Additional Resources
Crestron DM Essentials 4K60 Wall Plate Transm... Specs
| Inputs |
1x HDMI (HDMI 2.0)
|
| Embedded Audio Input |
HDMI
|
| Outputs |
1x RJ45 (HDBaseT)
|
| Other I/O |
1x Block 3-Pin RS-232
1x Block 4-Pin IR Input/Output |
| HDR Support |
Yes: HDR10/HDR10+/Dolby Vision
|
| HDCP Support |
Yes: Version 2.3
|
| EDID Support |
Passthrough
|
| Max Transmission Distance |
UHD 4K:
131.2' / 40 m DCI 2K, 1080p: 229.7' / 70 m |
| Video Format |
HDMI (12-Bit 4:4:4):
4096 x 2160: 29.97/23.98 fps 3840 x 2160: 29.97/23.98 fps 1920 x 1080p: 59.94 fps 1920 x 1080i: 29.97 fps HDMI (12-Bit 4:2:2): 4096 x 2160: 59.94 fps 3840 x 2160: 59.94 fps HDMI (8-Bit 4:4:4): 4096 x 2160: 59.94 fps 3840 x 2160: 59.94 fps 2560 x 1600: 59.94 fps |
| Audio Format |
Unspecified Digital Signal
|
| Surround/Immersive Audio |
DTS, DTS 96/24, DTS-ES, DTS-HD High Resolution, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD
|
| Supported Cable Types |
Cat 5e or higher
|
| Power I/O |
1x Block 2-Pin (24 VDC at 0.75 A) Input
|
| Certifications |
CE, FCC Part 15 Class B, IC
|
| Operating Conditions |
32 to 104?F / 0 to 40?C at 20 to 90% Humidity
|
| Dimensions |
4.1 x 2.2 x 1.7" / 105 x 56 x 44 mm
|
| Wall Box Gang Size |
1 Gang
|
| Weight |
5.5 oz / 157 g
|
| Package Weight |
0.58 lb
|
| Box Dimensions (LxWxH) |
7 x 3.4 x 2.7"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
