Dfrobot SEN0307 SEN0307 Ultrasonic Sensor Gravity URM09 Analogue Arduino/Raspberry Pi Boards
Gravity: URM09 Analog ultrasonic sensor is an ultrasonic sensor specially designed for fast ranging and obstacle avoidance applications. Its measuring frequency can reach up to 30Hz. The sensor adopts built-in temperature compensation and analogue output. Meanwhile, it can provide accurate distance measurement within 500cm. The sensor is compatible with Arduino, Raspberry Pi or other main-control boards with 3.3V or 5V logic level.
- Power supply range from 3.3VDC to 5.5VDC
- Operating current of 20mA
- Operating temperature range from -10�C to +70�C
- Measurement range from 2cmto500cm
- Resolution of 1cm
- 1% accuracy
- Frequency of 30Hz max
- Dimension is 47mm � 22 mm/1.85� 0.87

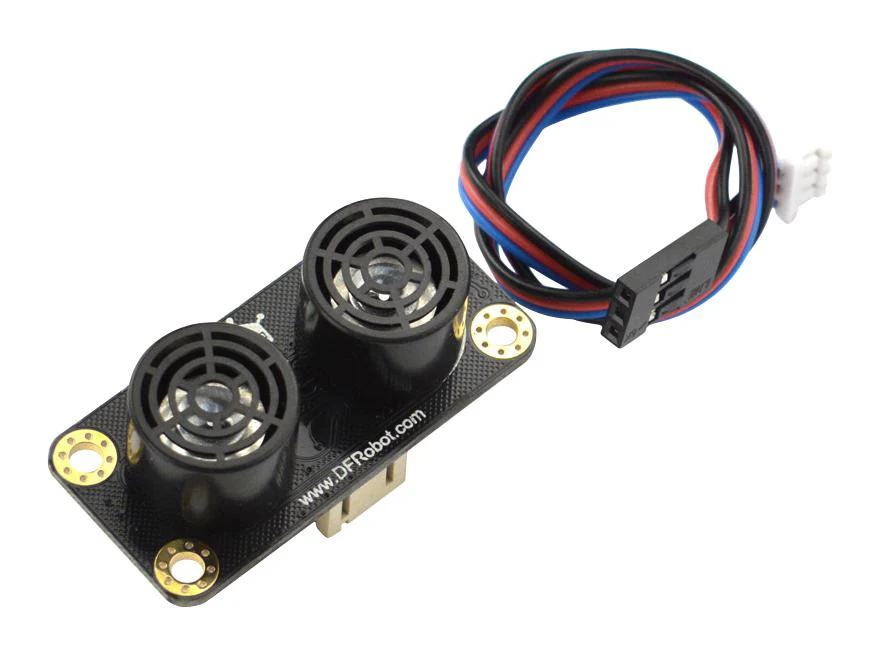

URM09 ultrasonic sensor (gravity analogue) x 1, PH2.0-3P connector x 1.
Product details
| Accessory Type | Gravity URM09 Analogue Ultrasonic Sensor |
| For Use With | Arduino and Raspberry Pi Boards |
| Product Range | - |
Other details
| Brand | DFROBOT |
| Part Number | SEN0307 |
| Quantity | Each |
| Technical Data Sheet EN |  |
