Dfrobot SEN0405 SEN0405 Accelerometer Board Fermion Triple Axis LIS2DW12 Arduino ±16g New
Fermion LIS2DW12 triple axis accelerometer sensor (Breakout) (±16g). The LIS2DW12 is a low power high-performance three-axis linear accelerometer, featuring low power(50nA), low noise(1.3mgRMS), 32 FIFO, ±2g/±4g/±8g/±16g full scale, 16-bit data output and 1.6~1.6KHz bandwidth. The sensor comes with two independent programmable interrupts and a dedicated internal engine that can achieve various motion and acceleration detection including free-fall, portrait/landscape detection, 6D/4D orientation detection, configurable single/double-tap recognition, stationary/motion detection, wakeup for smart power saving, etc. It is suitable for self-balancing robot, free-fall detection, human action recognition, gesture recognition and gaming tap/double-tap recognition, motion detection for wearables.
- Selectable scales ±2g/±4g/±8g/±16g
- 16bit data output
- Two independent programmable interrupts
- 3.3V operating voltage and 50nA operating current
- SPI/I2C interface
- 0x19 (default address)/0x18 (optional: pull down the SDO pin to select) I2C address
- Operating temperature range -40°C to 85°C
- 16bit data output
- 32 level FIFO (first-in first-out buffer zone) and 10000g high shock survivability

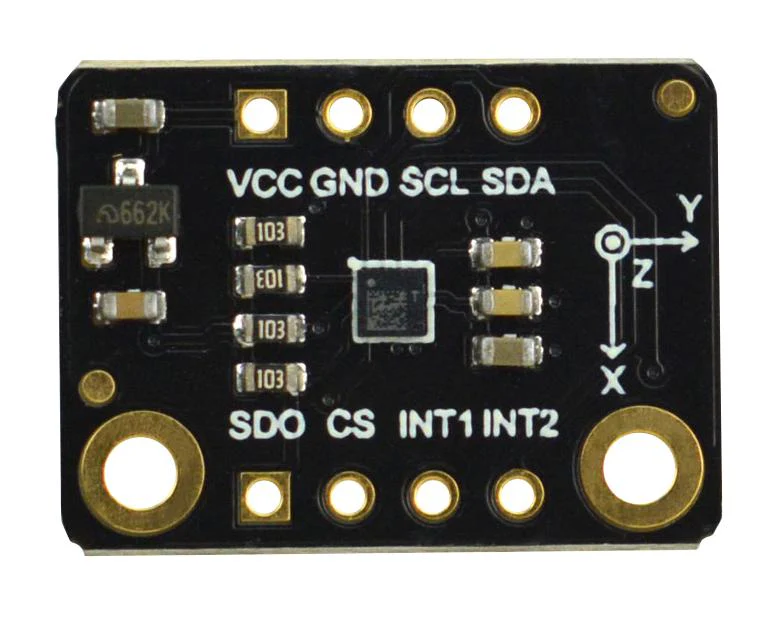

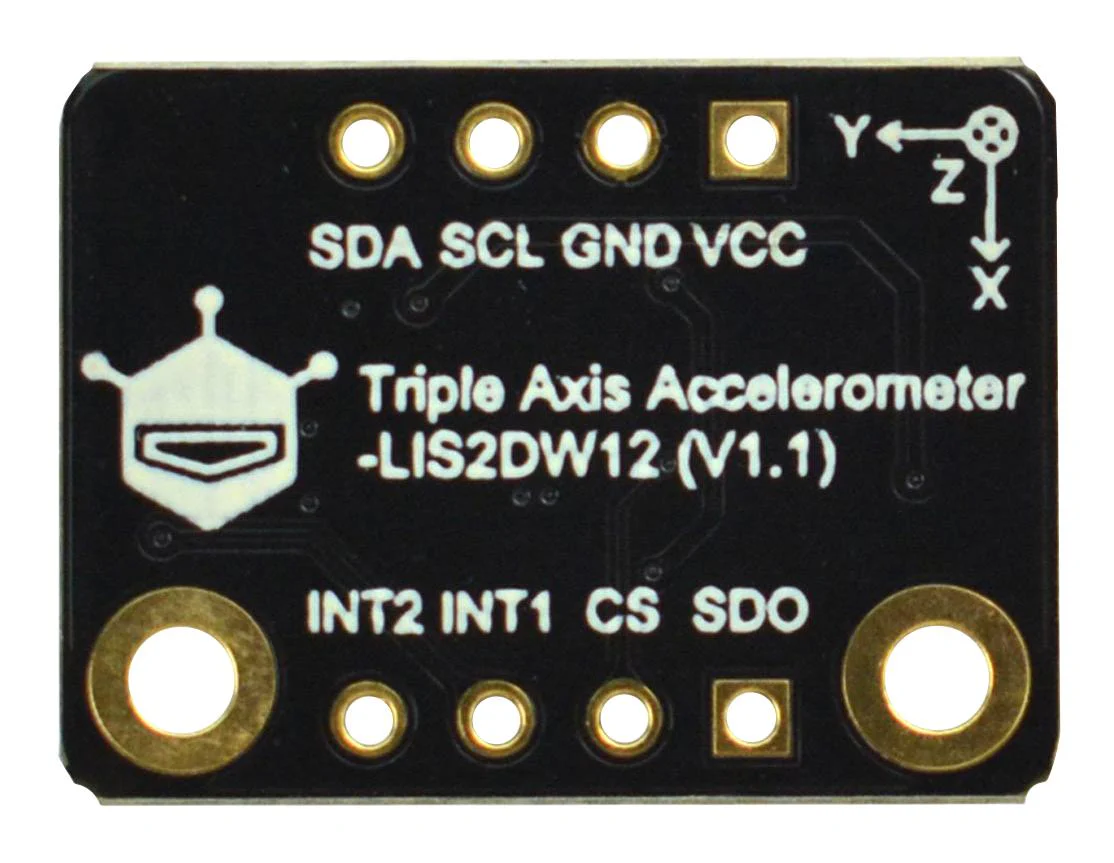

Fermion LIS2DW12 triple axis accelerometer sensor (Breakout) (±16g), 2.54-4P black single pin header x2.
Product details
| Accessory Type | Triple Axis Accelerometer Sensor |
| For Use With | Arduino Board |
| Product Range | - |
Other details
| Brand | DFROBOT |
| Part Number | SEN0405 |
| Quantity | Each |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$9.15
