Diodes INC. ZXGD3004E6TA Mosfet IC Low Side 0V-40V Supply 8A Out SOT-23-6

The ZXGD3004E6TA is a high-speed non-inverting single MOSFET Gate Driver IC capable of driving up to 8A into a MOSFET or IGBT gate capacitive load from supply voltages up to 40V. With typical propagation delay times down to ~1ns and rise/fall times down to 14ns this device ensures rapid switching of the power MOSFET or IGBT to minimize power losses and distortion in high current fast switching applications. It is inherently rugged to latch-up and shoot-through and its wide supply voltage range allows full enhancement to minimize on-losses of the power MOSFET or IGBT. Its low input voltage requirement and high current gain allows high current driving from low voltage controller ICs and the optimized pin-out SOT23-6 package with separate source and sink pins eases board layout, enabling reduced parasitic inductance and independent control of rise and fall slew rates.

• Fast switching emitter-follower configuration
• Low input current requirement
• 1.9A(source)/1.9A(sink) Output current from 10mA input
• Separate source and sink outputs for independent control of rise and fall time
• Optimized pin-out to ease board layout and minimize trace inductance
• No Latch Up
• No shoot through
• Near - zero quiescent and output leakage current

Applications

Power Management, Audio, Motor Drive & Control

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	DIODES INC.
Part Number	ZXGD3004E6TA
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Product Change Notice EN

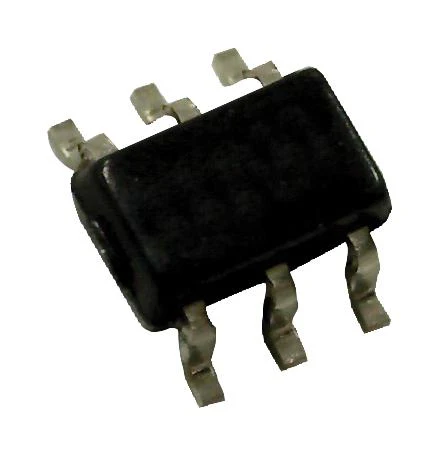

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
