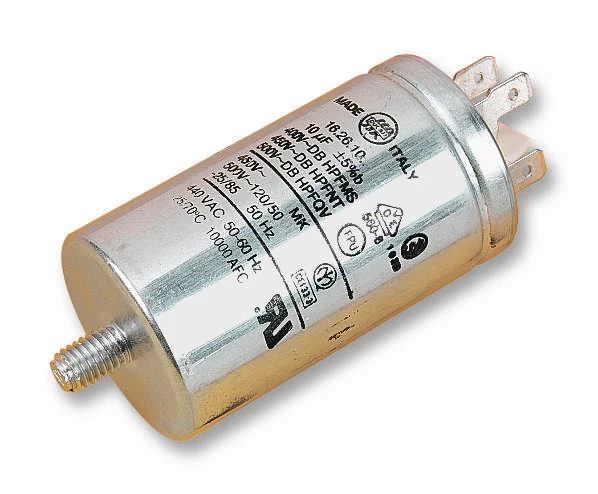

DUCATI 4.16.26.10.64 Film Capacitor, 10 µF, 4.16.26 Series, 450 V, Quick Connect, Snap-In, ± 5%
This is a Film Capacitor, 10 µF, 4.16.26 Series, 450 V, Quick Connect, Snap-In, ± 5% product from DUCATI with the model number 4.16.26.10.64
Product details
| Operating Temperature Min | -25°C |
| Capacitor Terminals | Quick Connect, Snap-In |
| Operating Temperature Max | 85°C |
| dv/dt Rating | - |
| Stud Size - Metric | - |
| Product Range | 4.16.26 Series |
| Diameter | 40mm |
| Automotive Qualification Standard | - |
| Capacitor Case Style | Can |
| Capacitance | 10µF |
| Voltage Rating V AC | 450V |
| Capacitance Tolerance | ± 5% |
| Packaging | Each |
| Capacitor Dielectric Type | PP (Polypropylene) |
| Height | 72mm |
Other details
| Brand | DUCATI |
| Part Number | 4.16.26.10.64 |
| Quantity | Each |
| Technical Data Sheet EN |  |
