Gossen MAVOSPEC BASE Industrial Light Meter

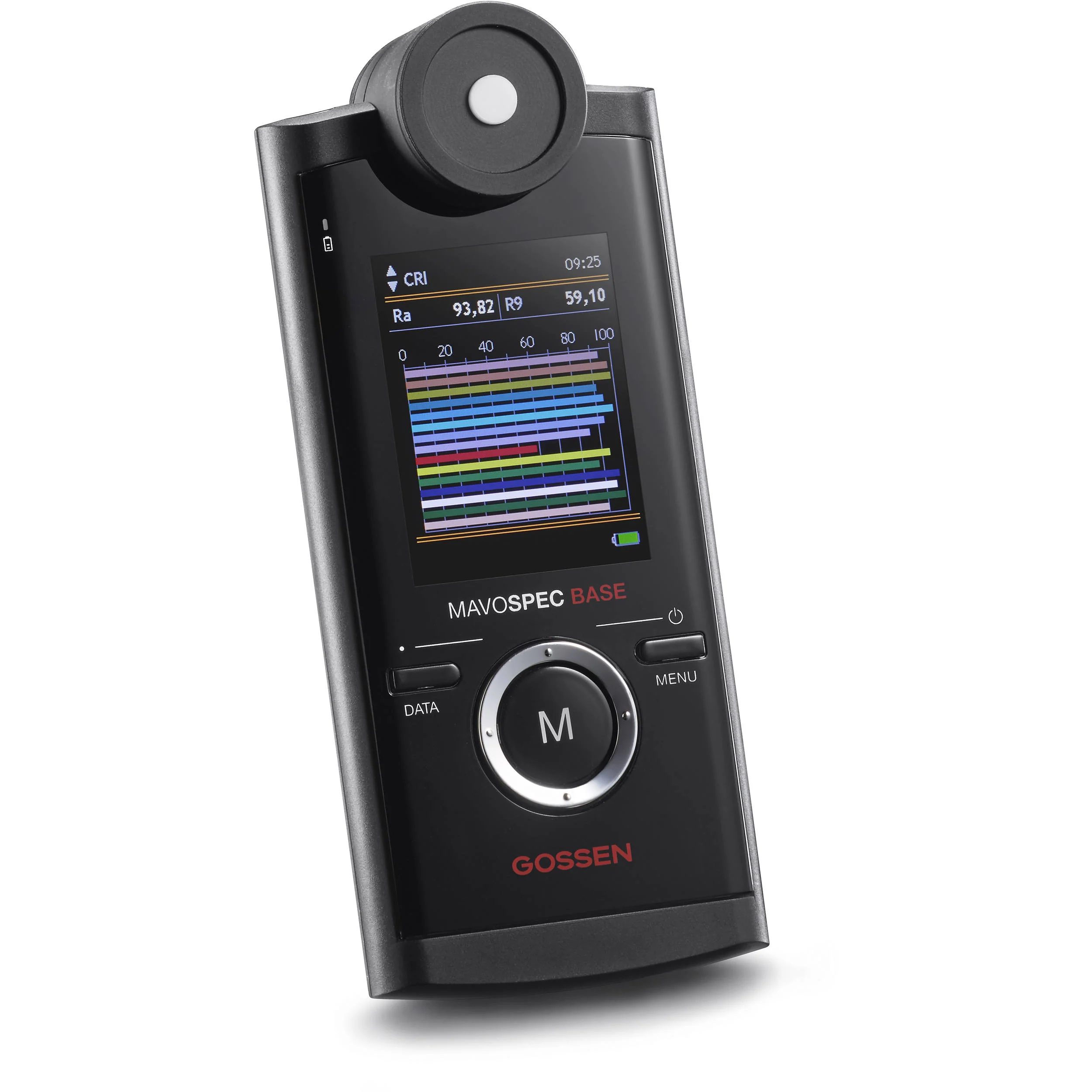

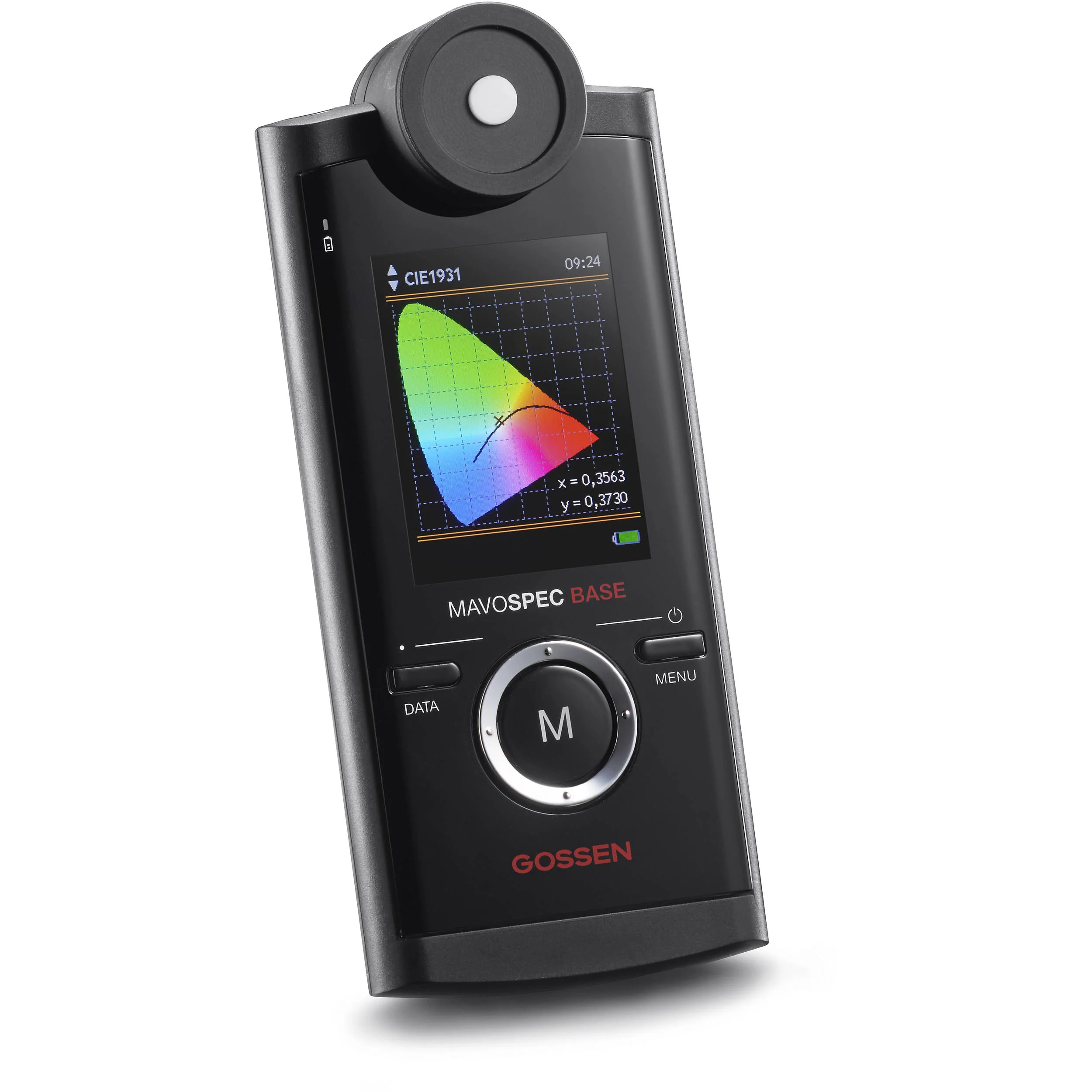

Product image 1
Product image 2
Product image 3
Product image 4

Gossen MAVOSPEC BASE Industrial Light Meter

Gossen Mavospec Base Overview

Accurately measure the quality of your lights with this MAVOSPEC BASE Industrial Light Meter from Gossen. This spectrometer uses incident metering to measure light from 10-100,000 lux as well as in the visible light spectrum of 380-780nm. Also, it works with a variety of different types of lighting, including LEDs, fluorescent lights, halogen lamps, and natural daylight. It offers a variety of measurement options as well, including CRI, CCT, peak wavelength, color purity Duv, chromaticity, and flicker measurement. This meter even supports the TM-30-15 color rendering measurement of Rf and Rg as established by IES. The device is optimized for one-handed operation and has a 2.1" color 320 x 240 TFT display for viewing and changing settings. It can save readings to an included 4GB microSD card using a CSV format and runs on a rechargeable lithium-ion battery pack. Additionally, it has a USB port for firmware updates.

Supports TM-30-15 color rendering measurement method as established by the North American Illuminating Engineering Society (IES), which delivers more accurate measurement of both color fidelity and color saturation values
Measuring range of 10-100,000 lux
Spectral power distribution measurements of light between 380-780nm with the ability to determine peak and dominant wavelengths
Measures chromaticity and color coordinates with CIE 1931 [x,y], CIE 1960 [u,v], and CIE 1976 [u',v'] and display of the CIE standard color table
Can measure correlated color temperature as well as color rendering index Ra, as well as R1 through R15 values
Can measure flicker as an index, percentage, and frequency
Temperature sensor will help compensate for measurement changes throughout a wide temperature range
One-handed operation is made easy with a ring controller and keys alongside a 2.1" color TFT display
USB port for data transfer from the included 4GB microSD card as well as for future firmware updates
Can run for 8 hours continuously on a single charged battery or from an AC adapter.
UPC: 719821413837

In the Box

  • Gossen MAVOSPEC BASE Industrial Light Meter
  • Rechargeable Battery
  • 4GB microSD Card
  • USB Cable
  • Aluminum Case
  • Wallet
  • Power Pack
  • Carrying Strap

    Gossen Mavospec Base Specs

    Meter Type Spectrometer
    Metering
    Light Reading Method Incident
    Measuring Range 10 to 100,000 Lux / 0.9 to 9290 fc
    Spectral Wavelength Range 380 to 780 nm
    Physical
    Receptor Element CMOS
    Display 2.1" / 5.3 cm Color LCD
    System Connection USB 2.0 Port
    Media Card Reader 1 x microSD (Unspecified Type)
    Tripod Mounting Thread None
    General
    Battery 1 x Rechargeable
    AC Input Power 100 to 240 VAC, 50 / 60 Hz at 0.15 A
    Wireless Connectivity None
    Dimensions 5.5 x 2.4 x 1.2" / 139 x 60 x 30 mm
    Weight 7.0 oz / 200.0 g
    Packaging Info
    Package Weight 3.68 lb
    Box Dimensions (LxWxH) 12.55 x 11.55 x 4.5"

    Gossen Mavospec Base Reviews
