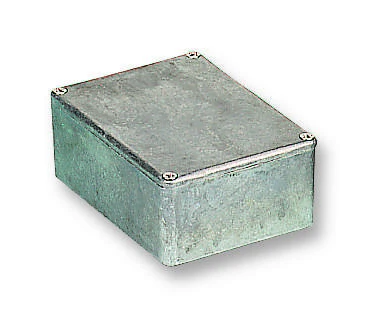

HAMMOND 1590G IP54 Die Cast Aluminium Instrument Enclosure - 100x50x21mm
- Rugged, diecast aluminum alloy (tough - yet easy to machine), electronic instrument enclosure
- Lap joint construction provides protection against access of dust and splashing water
- Also provides for improved EMI/RFI shielding
- Unpainted version is vibra finished for a smooth surface with no sharp edges
- Lap jointed lid, fastened by machine screws into threaded holes
- Satin black painted version is painted with tough polyester powder paint for a lasting finish, even after machining
- Designed to meet IP54
- Low side wall draft angle (2 degrees or less) for easy P.C. board mounting
Product details
| External Depth - Imperial | 0.83" |
| Body Colour | Unfinished |
| External Width - Metric | 50mm |
| Enclosure Type | Instrument |
| NEMA Rating | NEMA 12K |
| External Height - Metric | 100mm |
| External Height - Imperial | 3.94" |
| External Width - Imperial | 1.97" |
| Product Range | - |
| IP Rating | IP54 |
| External Depth - Metric | 21mm |
| Enclosure Material | Aluminium |
Other details
| Brand | HAMMOND |
| Part Number | 1590G |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$5.23
Original: $17.42
-70%HAMMOND 1590G IP54 Die Cast Aluminium Instrument Enclosure - 100x50x21mm—
$17.42
$5.23Product Information
