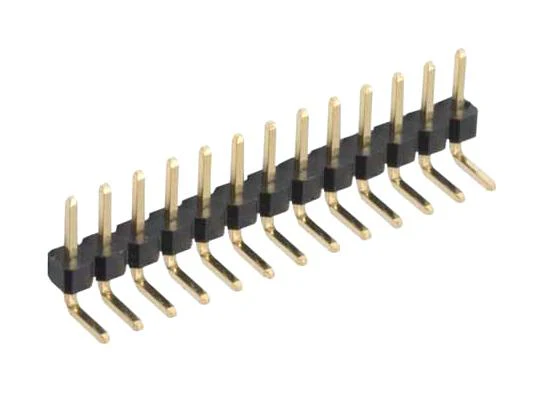

Harwin M22-2035005 M22-2035005 Pin Header Right Angle Wire-to-Board 2 mm 1 Rows 50 Contacts Through Hole M22
The M22-2035005 is a 50-contact 2mm male SIL Pin Header with gold plated phosphor bronze contacts, gold plated termination and black UL94V-0 polyamide (nylon) 6T housing. The M22 series connector has 3.4mm PC tail, horizontal connector orientation and PC tail/through board connection type. It is suitable for use with 0.5mm square mating pin size.
- 1A Current rating
- 650VAC Voltage proof
- 20mR Maximum contact resistance
- 1000MR (initial) Minimum insulation resistance
- 300 operations Durability
Commercial, Industrial
Other details
| Brand | HARWIN |
| Part Number | M22-2035005 |
| Quantity | Each |
| 3D Product Image EN |  |
| Drawing EN | |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$1.53
