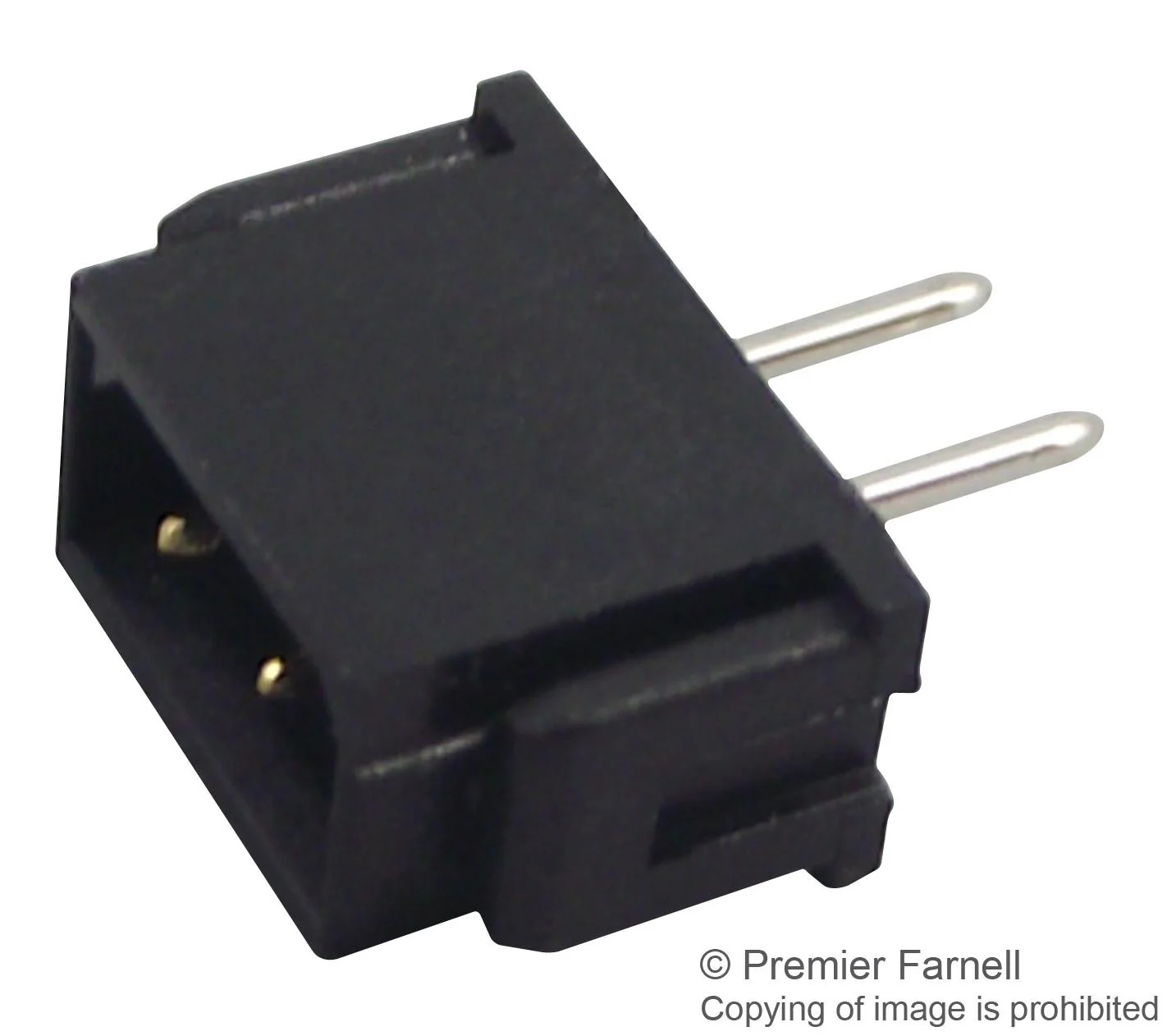

HARWIN M80-8520242 Board-To-Board Connector, Vertical, 2 mm, 2 Contacts, Plug, Datamate L-Tek M80 Series, Through Hole
The M80-8520242 is a 2-contact male unlatched Datamate L-Tek SIL PCB Plug with black UL94V-0 polyamide (nylon) 46 housing, gold plated phosphor bronze contacts and 100% tin over nickel plated termination. The M80 series connector has vertical connector orientation and PC tail/through board connection type. It is suitable for Ø0.5mm mating pin size. The connector is intended for use as a low voltage connector in high packing density electronic equipment. The connector is polarised to prevent mismatching.
- 3A (at 25°C), 2.2A (at 85°C) Current rating
- 800VAC/DC Working voltage
- 20mR (initial), 25mR (after conditioning) Maximum contact resistance
- 1000MR (initial), 100MR (after conditioning) Minimum insulation resistance
- 500 operations Durability
Applications
Industrial
Product details
| No. of Contacts | 2Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Plug |
| Product Range | Datamate L-Tek M80 Series |
| Contact Material | Phosphor Bronze |
| Contact Termination Type | Through Hole |
| Pitch Spacing | 2mm |
| No. of Rows | 1Rows |
Other details
| Brand | HARWIN |
| Part Number | M80-8520242 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
