Harwin M80-8890405 M80-8890405 Rectangular Connector Dual in Line Datamate L-Tek M80 4 Contacts Receptacle 2 mm Crimp Row

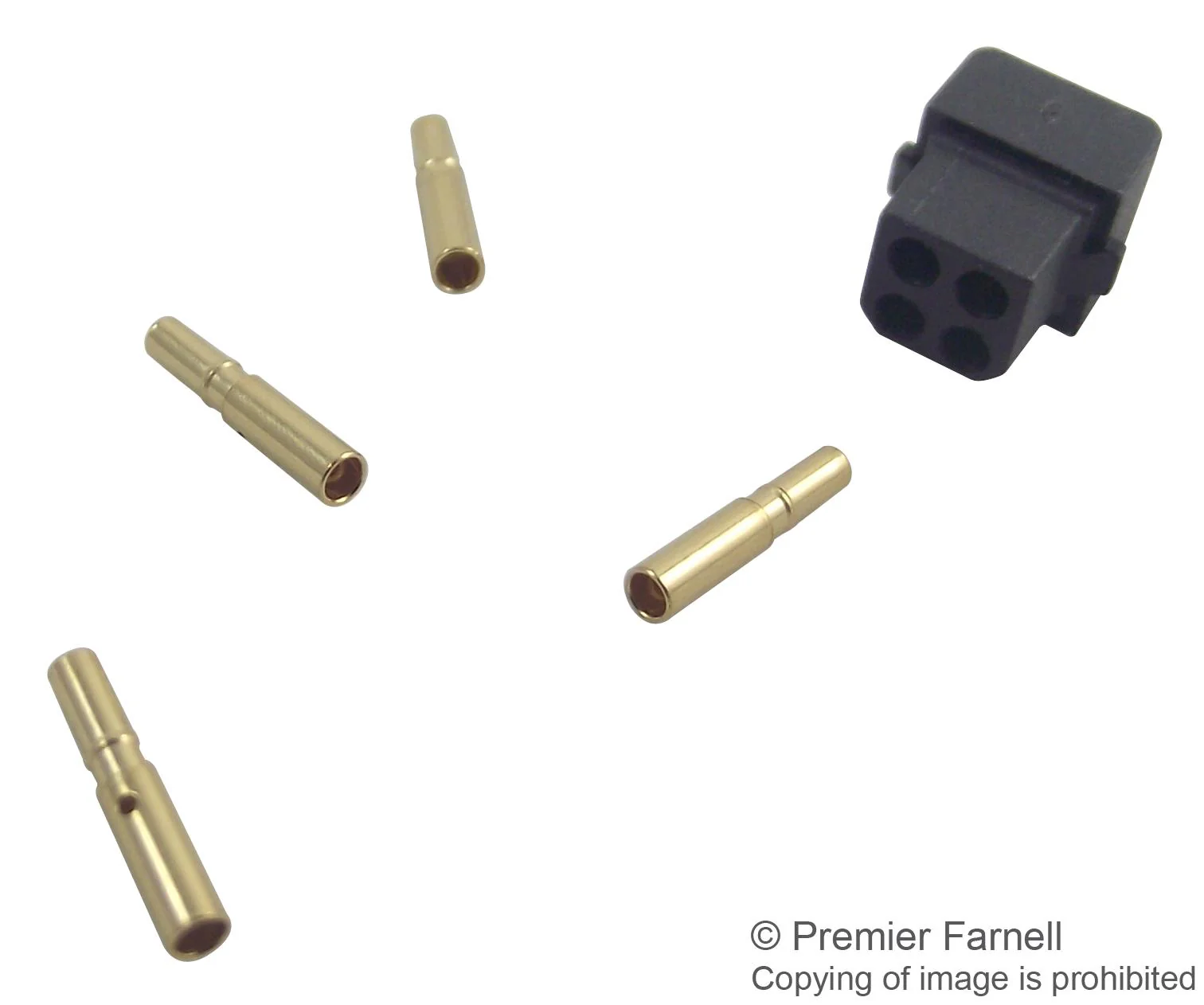

The M80-8890405 is a 4-contact 2mm female Datamate L-Tek DIL Cable Connector Kit with housing and contacts. Large bore is suitable for 22AWG cable (�1.1mm max insulation), M80-0110005 spare contacts. Housing is made of black UL94V-0 PBT with gold plated beryllium copper contact clip/brass shell contact base and gold plated termination. The M80 series socket has straight connector orientation and cable (crimp) connection type. It is suitable for �0.5mm mating pin size. The connector is intended for use as a low voltage connector in high packing density electronic equipment.
- 3A (at 25°C), 2.2A (at 85°C) Current rating
- 120VAC/DC Working voltage
- 20mR (initial), 25mR (after conditioning) Maximum contact resistance
- 1000MR (initial), 100MR (after conditioning) Minimum insulation resistance
- 500 operations Durability
Industrial
Other details
| Brand | HARWIN |
| Part Number | M80-8890405 |
| Quantity | Each |
| Drawing EN |  |
| 3D Product Image EN | |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$4.36
