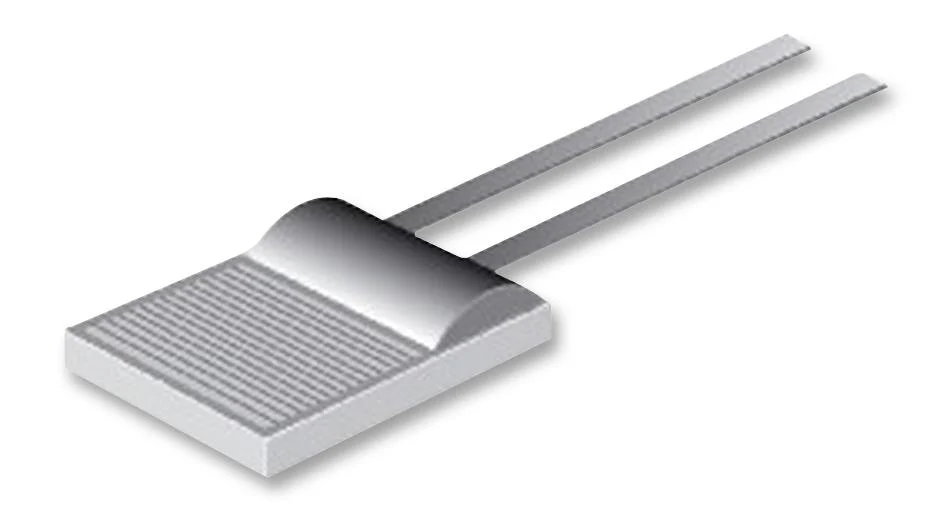

IST Innovative Sensor Technology P0K1.202.3FW.A.007 P0K1.202.3FW.A.007 RTD Flat Wire Class A -200 °C 300 100 ohm 300°C Series
- P0K1.202.3FW.A.007 platinum sensor with wires for low to medium temperatures
- Excellent long-term stability
- Low self-heating
- Optimal price/performance ratio
- Operating temperature range from 200°C to +300°C
- Nominal resistance of 100 ohm at 0°C, characteristics curve of 3850ppm/K
- Long-term stability of < 0.04% at 1000h at maximal operating temperature
- Connection: Ni-flat-wire Au-coated, 0.2 x 0.4 mm (HxW) (solderable, weldable, crimpable), 7mm long
- Dimension is 2mm x 2mm x 0.65mm / 1.3mm (L x W x H / H2 in mm)
Other details
| Brand | IST INNOVATIVE SENSOR TECHNOLOGY |
| Part Number | P0K1.202.3FW.A.007 |
| Quantity | Each |
| Technical Data Sheet EN |  |
