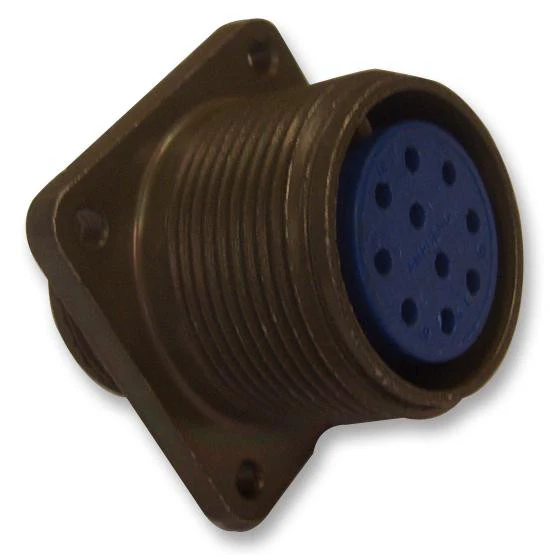

ITT CANNON MS3100E24-22S Circular Connector, MIL-DTL-5015 Series, Wall Mount Receptacle, 4 Contacts, Solder Socket, Threaded
Product details
| Contact Material | Brass, Copper Alloy |
| Circular Connector Shell Style | Wall Mount Receptacle |
| Contact Plating | Silver |
| Insert Arrangement | 24-22 |
| Connector Body Material | Aluminium Alloy Body |
| Service Class | Environmentally Sealed |
| Coupling Style | Threaded |
| No. of Contacts | 4Contacts |
| Product Range | MIL-DTL-5015 Series |
| Connector Body Plating | Olive Drab Chromate over Cadmium |
| Insert Rotation | N |
| Circular Contact Type | Solder Socket |
| Military Specification | MIL-DTL-5015 Series |
Other details
| Brand | ITT CANNON |
| Part Number | MS3100E24-22S |
| Quantity | Each |
| Technical Data Sheet EN |  |
