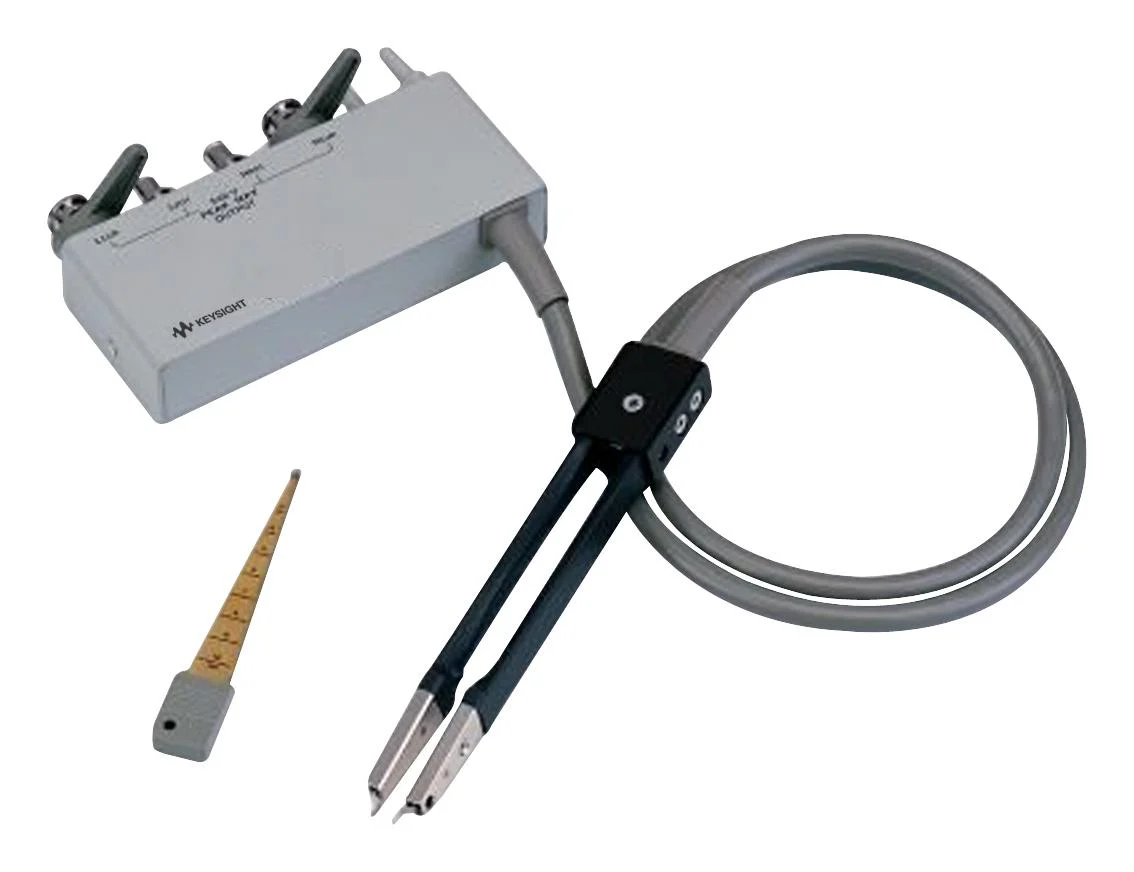

Keysight Technologies 16334A 16334A Test Cable Assembly Tweezers Contacts Fixture
16334A test fixture with tweezer contacts is designed for impedance evaluations of SMD. The minimum SMD size that this fixture is adapted to evaluate is 1.6(L) x 0.8(W) [mm]. The tweezers' contacts on this fixture makes it easy to hold the DUT.
- 4-terminal pair, BNC connector
- 2-terminal DUT connection
- Applicable instruments: E4980A/AL, E4981A, E4990A
- Frequency range from 5Hz to 15MHz
- Maximum voltage of ±42V peak (AC+DC)
- Cable length (approx): 1m (from BNC connectors to the top of tweezers)
- Operating temperature range from 0 to 55°C
Tweezers contact test, 1 x compensation block 16334-60001, 1x operating note 16334-90000.
Other details
| Brand | KEYSIGHT TECHNOLOGIES |
| Part Number | 16334A |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$809.95
Original: $2,699.83
-70%Keysight Technologies 16334A 16334A Test Cable Assembly Tweezers Contacts Fixture—
$2,699.83
$809.95Product Information
