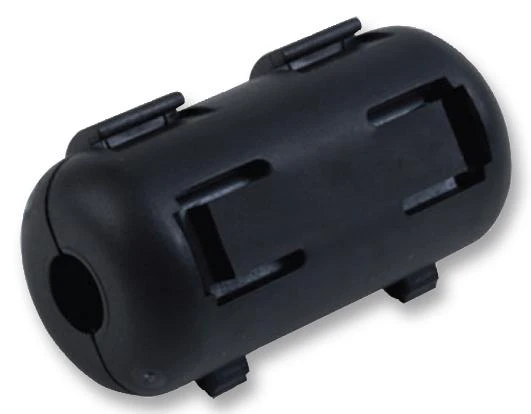

Laird 28A0434-0A2 28A0434-0A2 Ferrite Core 277 ohm 5.35 mm 100 MHz

The 28A0434-0A2 is a broadband Split/Snap-on Core provides excellent common and differential mode EMI suppression on round cable assemblies. The lightweight inexpensive plastic snap-on cases provide secure closure of the split cores onto the cable. The in-circuit impedance may be substantially increased by passing 2 turns of the wire conductor through the ferrite core assembly. It is suitable for fixing EMI issues without board level design changes, cable and wiring harnesses, energy and utilities.

• Easy to install

Applications

Security, Consumer Electronics, Automotive, Computers & Computer Peripherals, Medical, Industrial, Communications & Networking, Logistics

Product details

Outer Diameter	14.71mm
Length	43.03mm
Inner Diameter	5.44mm
Frequency Min	-
Frequency Max	-
Impedance @ 100MHz	277ohm
Product Range	-

Other details

Brand	LAIRD
Part Number	28A0434-0A2
Quantity	Each
Technical Data Sheet EN
