Lascar DPM970 DPM970 Digital Panel Meter 3-1/2 Digits AC Voltage 0V to 500V

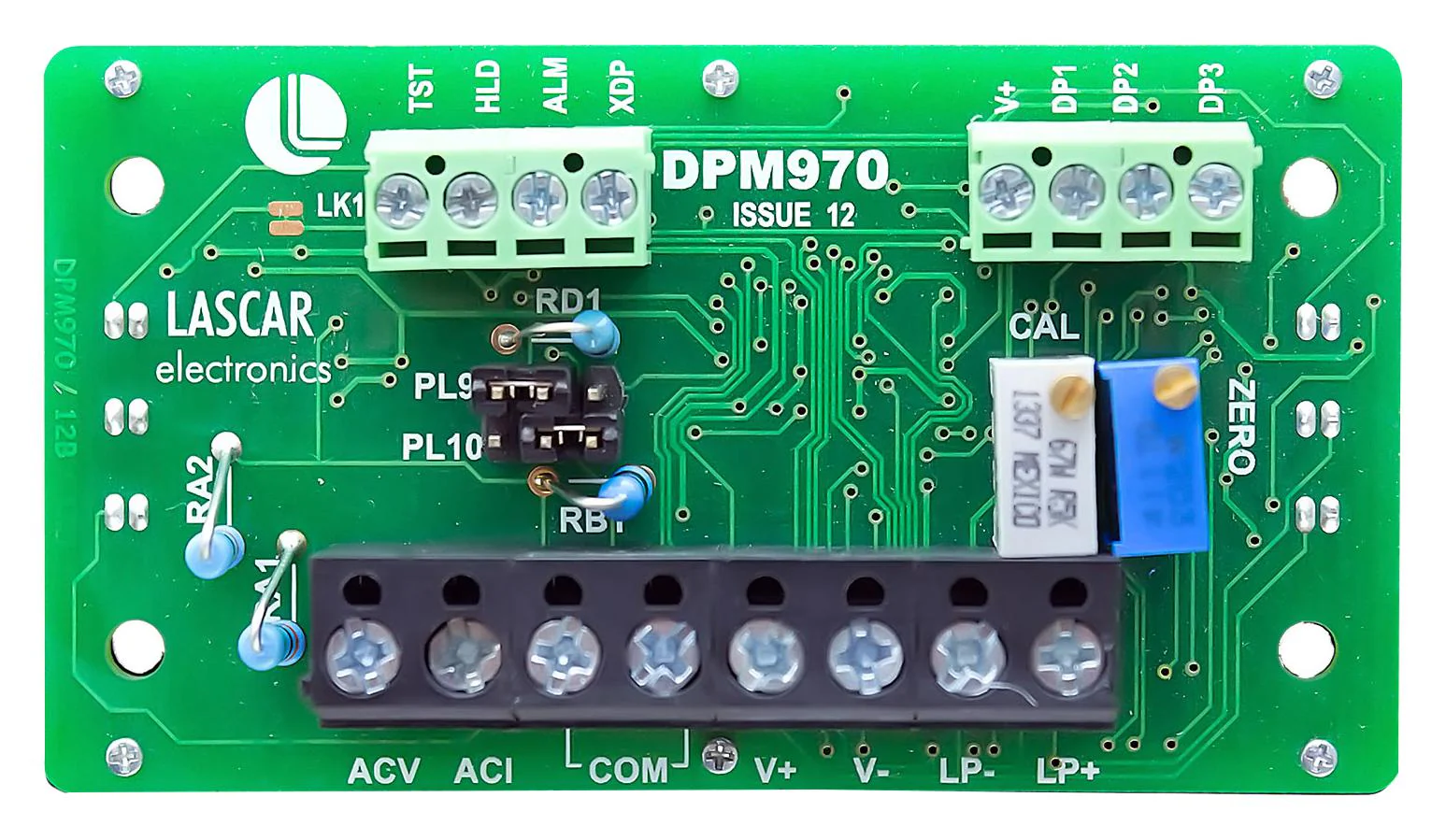

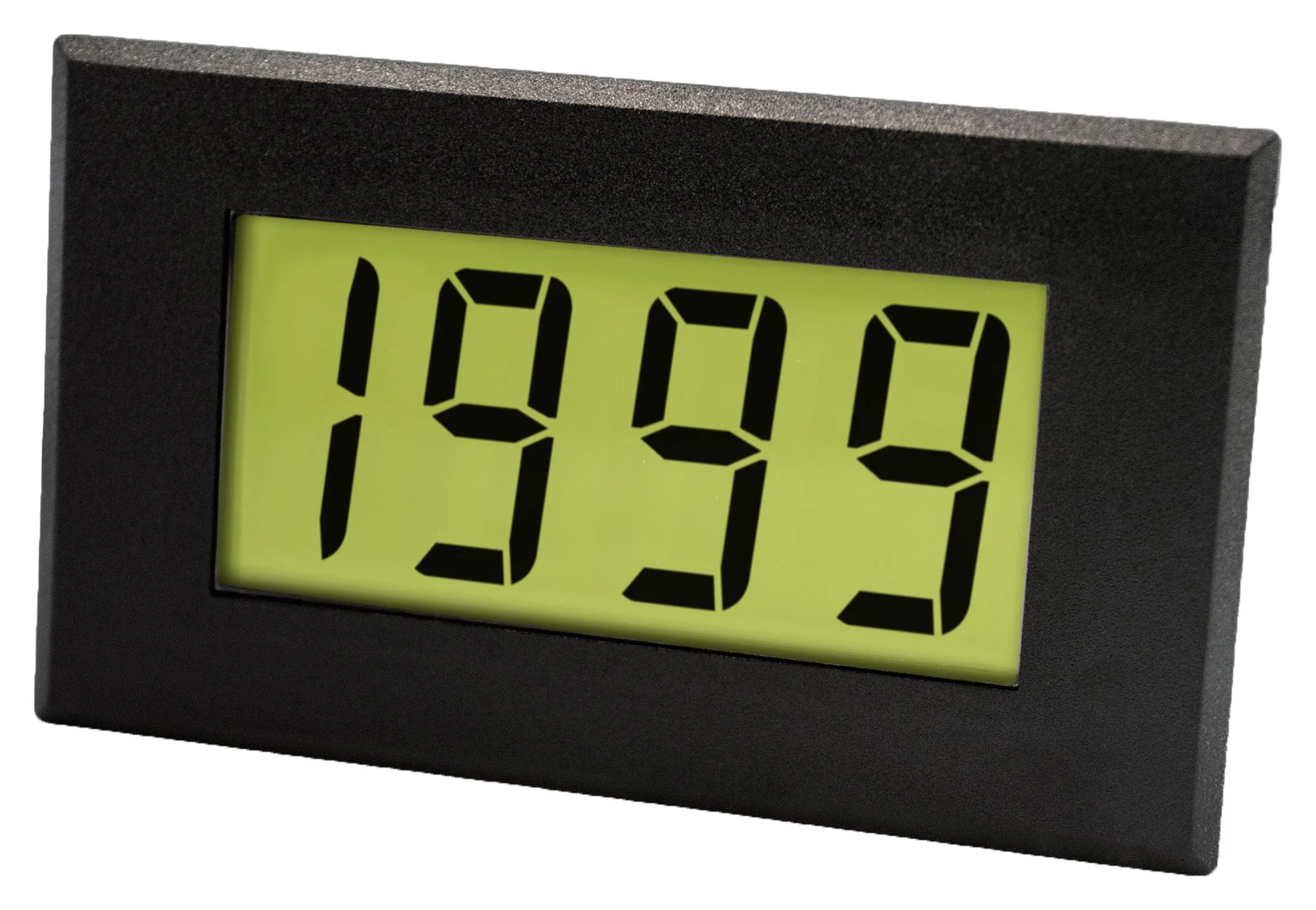

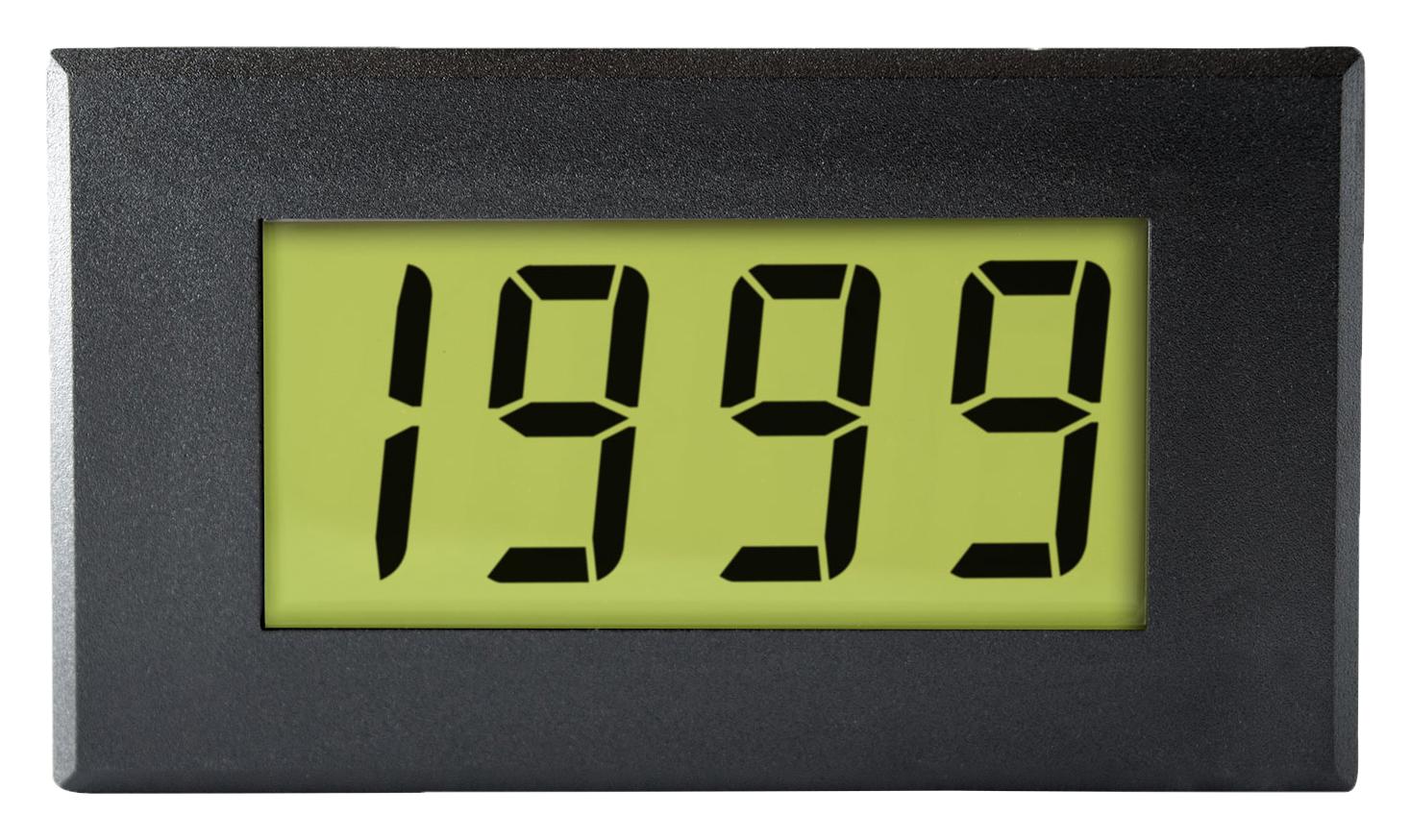

The DPM970 is a Large AC LCD Voltmeter features a 3-1/2-digit LCD with 19mm digit height and LED backlighting. With 500VAC full scale reading, auto-zero and auto-polarity and screw terminal connections, this meter can be fitted into a panel via the bezel, window and clips provided. This is a popular part, normally stocked in high quantity and suitable for new designs. Calibration is achieved via two multi-turn potentiometers for offset and scale. Connection to the meter is via screw terminals. The module is housed in a robust carrier which can be bolted in place or panel mounted using the bezel, window and clips provided.
- Digital hold function which freezes the last displayed reading
- Screw terminal connections
- Digital hold
- Measures voltage and current
- 3 Samples/sec rate
Industrial, Clock & Timing, Test & Measurement, Portable Devices
Product details
| No. of Digits / Alpha | 3-1/2 |
| Meter Function | AC Voltage |
| Meter Range | 0V to 500V |
| Digit Height | 19mm |
| Panel Cutout Height | 40mm |
| Panel Cutout Width | 72mm |
| Supply Voltage Min | 7.5V |
| Supply Voltage Max | 14V |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 50°C |
| Product Range | - |
Other details
| Brand | LASCAR |
| Part Number | DPM970 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$51.67
Original: $172.25
-70%Lascar DPM970 DPM970 Digital Panel Meter 3-1/2 Digits AC Voltage 0V to 500V—
$172.25
$51.67Product Information
