Lumberg 1503 17 1503 17 Phone Audio Connector 3 Contacts Jack 3.5 mm PCB Mount Silver Plated

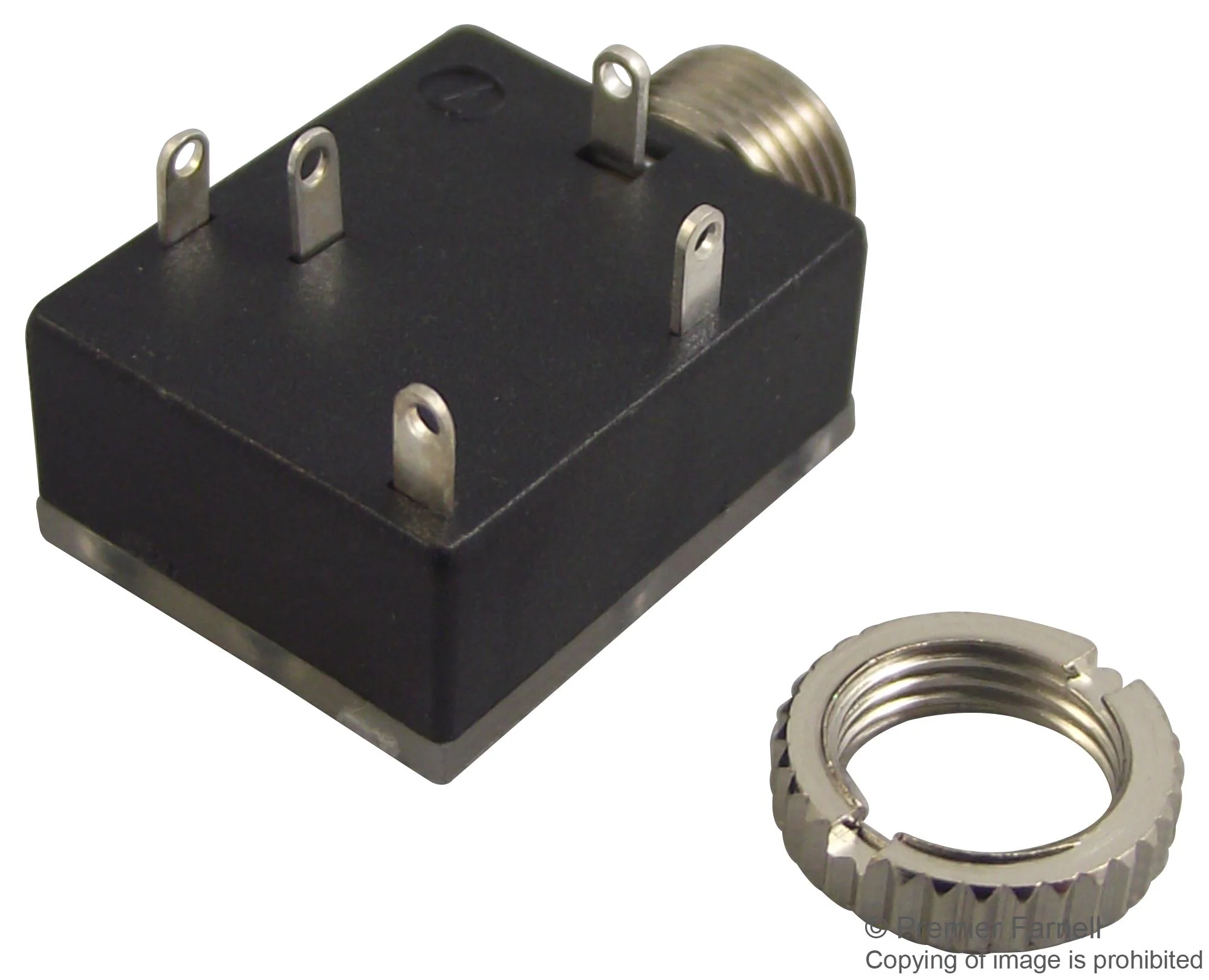

The 1503 17 is a 3-position 3.5mm angular Stereo Jack with silver-plated CuZn contacts, PBT GF (UL94V-0) insulation body, nickel-plated CuZn nut. With 2 break contacts and solder eyes, for printed circuit boards, back side mounting.
- 34VAC/DC Voltage rating
- 1A Current rating
- <=30mR Contact resistance
- >=100MR Insulation resistance
- Jack chassis socket according to JIS C 6560 JC35J3B
Audio
Other details
| Brand | LUMBERG |
| Part Number | 1503 17 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$0.95
Original: $3.18
-70%Lumberg 1503 17 1503 17 Phone Audio Connector 3 Contacts Jack 3.5 mm PCB Mount Silver Plated—
$3.18
$0.95Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The 1503 17 is a 3-position 3.5mm angular Stereo Jack with silver-plated CuZn contacts, PBT GF (UL94V-0) insulation body, nickel-plated CuZn nut. With 2 break contacts and solder eyes, for printed circuit boards, back side mounting.
- 34VAC/DC Voltage rating
- 1A Current rating
- <=30mR Contact resistance
- >=100MR Insulation resistance
- Jack chassis socket according to JIS C 6560 JC35J3B
Audio
Other details
| Brand | LUMBERG |
| Part Number | 1503 17 |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
