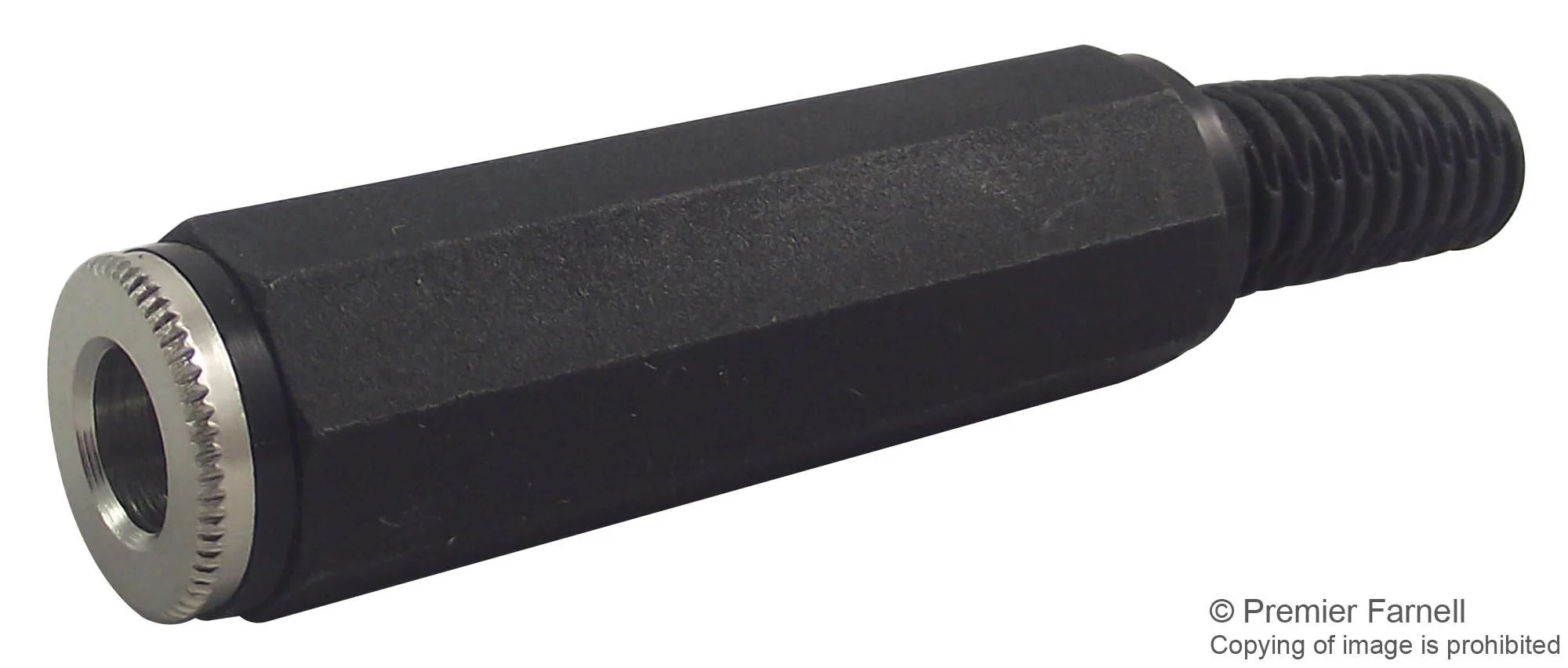

LUMBERG KLK 3 Phone Audio Connector, 3 Contacts, Socket, 6.35 mm, Cable Mount, Silver Plated Contacts, Metal Body
The KLK 3 is a 3-pole Stereo Audio Connector, straight version with kink protection and solder terminals. Polyphenylene oxide (PPO) body, silver-plated contacts. The stereo jack socket is suitable for use with KLS 3 and KLS 33 jack plugs. Designed according to the JISC 6560 standards.
- 5 to 40N Insertion force
- 5 to 40N Withdrawal force
- >=5000 Mating cycles
- <=50mR Contact resistance
- 2A Current rating
- 34VAC/DC Voltage rating
- >=10?R Insulation resistance
Applications
Industrial, Audio
Product details
| No. of Contacts | 3Contacts |
| Contact Plating | Silver Plated Contacts |
| Gender | Socket |
| Product Range | - |
| Pin Diameter | 6.35mm |
| Connector Body Material | Metal Body |
| Connector Mounting | Cable Mount |
Other details
| Brand | LUMBERG |
| Part Number | KLK 3 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
