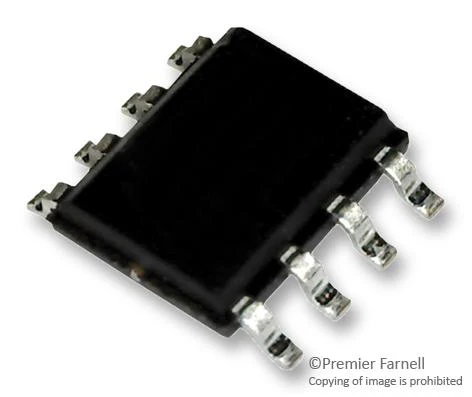

Macronix MX25V1635FM1I Flash Memory Serial NOR 16 Mbit 2M x 8bit SPI SOP 8 Pins
This is a Flash Memory, Serial NOR, 16 Mbit, 2M x 8bit, SPI, SOP, 8 Pins product from MACRONIX with the model number MX25V1635FM1I
Product details
| Flash Memory Type | Serial NOR |
| Memory Size | 16Mbit |
| Flash Memory Configuration | 2M x 8bit |
| IC Interface Type | SPI |
| Memory Case Style | SOP |
| No. of Pins | 8Pins |
| Clock Frequency | 80MHz |
| Access Time | - |
| Supply Voltage Min | 2.3V |
| Supply Voltage Max | 3.6V |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Product Range | 3V Serial NOR Flash Memories |
Other details
| Brand | MACRONIX |
| Part Number | MX25V1635FM1I |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$0.54
Original: $1.80
-70%Macronix MX25V1635FM1I Flash Memory Serial NOR 16 Mbit 2M x 8bit SPI SOP 8 Pins—
$1.80
$0.54Product Information
