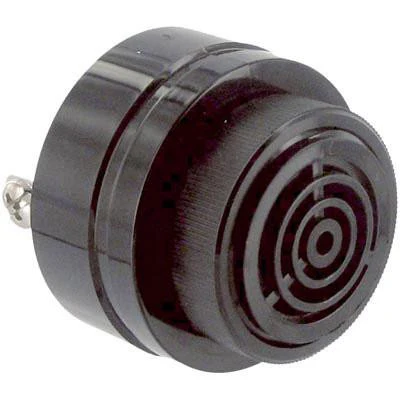

MALLORY SC307NR TRANSDUCER, PIEZO, 2.9KHZ, 90DBA, 7VDC
This is a TRANSDUCER, PIEZO, 2.9KHZ, 90DBA, 7VDC product from MALLORY with the model number SC307NR
Product details
| Transducer Function | Alarm |
| Tones | Continuous |
| Supply Voltage Min | 3V |
| Supply Voltage Max | 7V |
| Operating Current Max | 12mA |
| Sound Level SPL | 90dBA |
| Sound Level Distance | 609.6mm |
| Resonant Frequency | 2.9kHz |
| Product Range | - |
Other details
| Brand | MALLORY |
| Part Number | SC307NR |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$12.68
Original: $42.26
-70%MALLORY SC307NR TRANSDUCER, PIEZO, 2.9KHZ, 90DBA, 7VDC—
$42.26
$12.68Product Information
