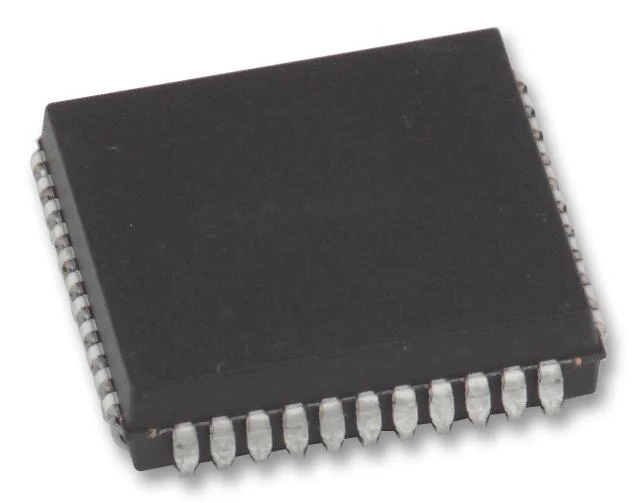

Microchip AT89C51RC-24JU AT89C51RC-24JU 8 Bit MCU High Performance Flash 8051 Family AT89C51 Series Microcontrollers 24 MHz 32 KB
The AT89C51RC-24JU is a low-power high-performance 8-bit CMOS Microcontroller with 32kB of flash programmable read-only memory and 512byte of RAM. The device is manufactured using high-density non-volatile memory technology and is compatible with the industry-standard 80C51 and 80C52 instruction set and pin out. The on-chip flash allows the program memory to be user programmed by a conventional non-volatile memory programmer. The 256byte expanded internal RAM is accessed via MOVX instructions after clearing -bit 1 in the SFR located at address 8EH. The other 256byte RAM segment is accessed the same way as the AT89-series and other 8052-compatible products. By combining a versatile 8-bit CPU with flash on a monolithic chip, the AT89C51RC is a powerful microcomputer which provides a highly-flexible solution.
- Compatible with MCS®51 products
- 10,000 write/erase cycles Endurance
- 0 to 33MHz fully static operation
- Three-level program memory lock
- 32 programmable I/O lines
- Three 16-bit timers/counters
- Eight interrupt sources
- Programmable serial channel
- Low-power idle and power-down modes
- Interrupt recovery from power-down mode
- Hardware watchdog timer
- Dual data pointer
- Power-off flag
Other details
| Brand | MICROCHIP |
| Part Number | AT89C51RC-24JU |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD CadSoft_EAGLE EN | |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
