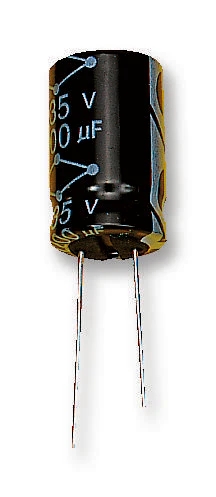

Multicomp PRO MCRH100V227M16X26 Electrolytic Capacitor 220 µF 100 V Mcrh Series ± 20% Radial Leaded 16 mm

The Multicomp MCRH series capacitors are general purpose, radial leaded polarized aluminium electrolytic capacitors. The capacitance value ranges from 0.1µF to 15000µF.

• Rated voltage range of 10VDC to 100VDC
• Tolerance of ±20%
• Endurance of 2000h at 85°C
• Operating temperature range -40°C to 105°C
• Multicomp products are rated 4.6 out of 5 stars
• 12 month limited warranty *view Terms & Conditions for details
• 96% of customers would recommend to a friend

Applications

Industrial, Power Management, Consumer Electronics, Portable Devices

Product details

Capacitance	220µF
Voltage Rating	100V
Product Range	MCRH Series
Capacitance Tolerance	± 20%
Capacitor Terminals	Radial Leaded
Diameter	16mm
Lead Spacing	7.5mm
Height	26mm
Operating Temperature Min	-40°C
Operating Temperature Max	105°C
Lifetime @ Temperature	2000 hours @ 105°C
ESR	-
Automotive Qualification Standard	-

Other details

Brand	MULTICOMP PRO
Part Number	MCRH100V227M16X26
Quantity	Each
Technical Data Sheet EN
