MURATA POWER SOLUTIONS MER1S0515SC Isolated Board Mount DC/DC Converter, 1 Output, 1 W, 15 V, 67 mA
This is a Isolated Board Mount DC/DC Converter, 1 Output, 1 W, 15 V, 67 mA product from MURATA POWER SOLUTIONS with the model number MER1S0515SC
Product details
| No. of Outputs | 1 Output |
| Output Power Max | 1W |
| Output Voltage - Output 1 | 15V |
| Output Current - Output 1 | 67mA |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Output Voltage - Output 3 | - |
| Output Current - Output 3 | - |
| Product Range | MER1 Series |
| Input Voltage DC Min | 4.5V |
| Input Voltage DC Max | 5.5V |
| DC / DC Converter Output Type | Fixed |
| DC / DC Converter Type | SIP |
| DC / DC Converter Mounting | Through Hole |
| Approvals & Standards | UL |
| Width | 6.25mm |
| Height | 10.15mm |
| Depth | 19.65mm |
Other details
| Brand | MURATA POWER SOLUTIONS |
| Part Number | MER1S0515SC |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
| Product Change Notice EN | |

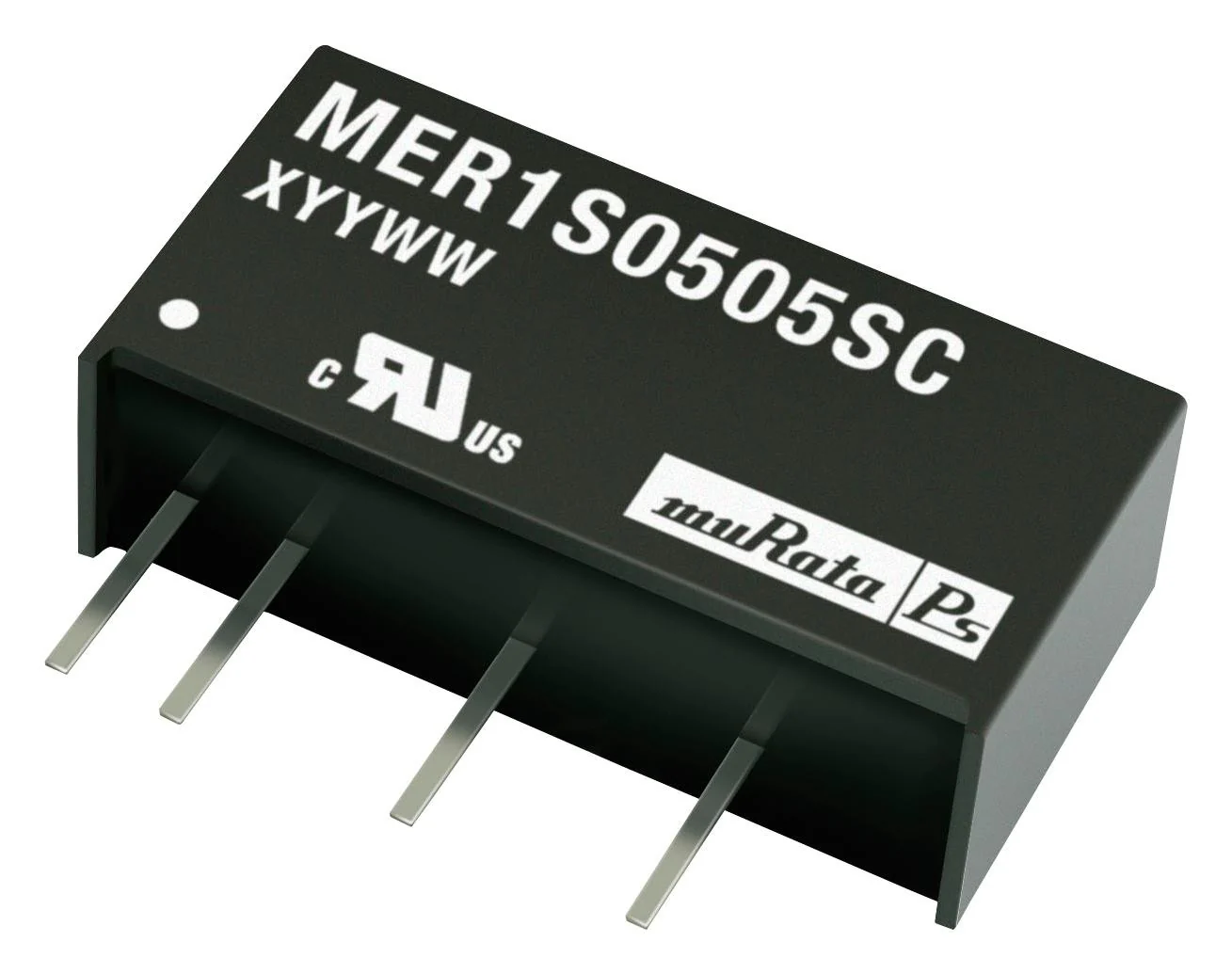

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
