MuxLab 5" Touch Control Panel with PoE
MuxLab 5" PoE Touch Control Panel Overview

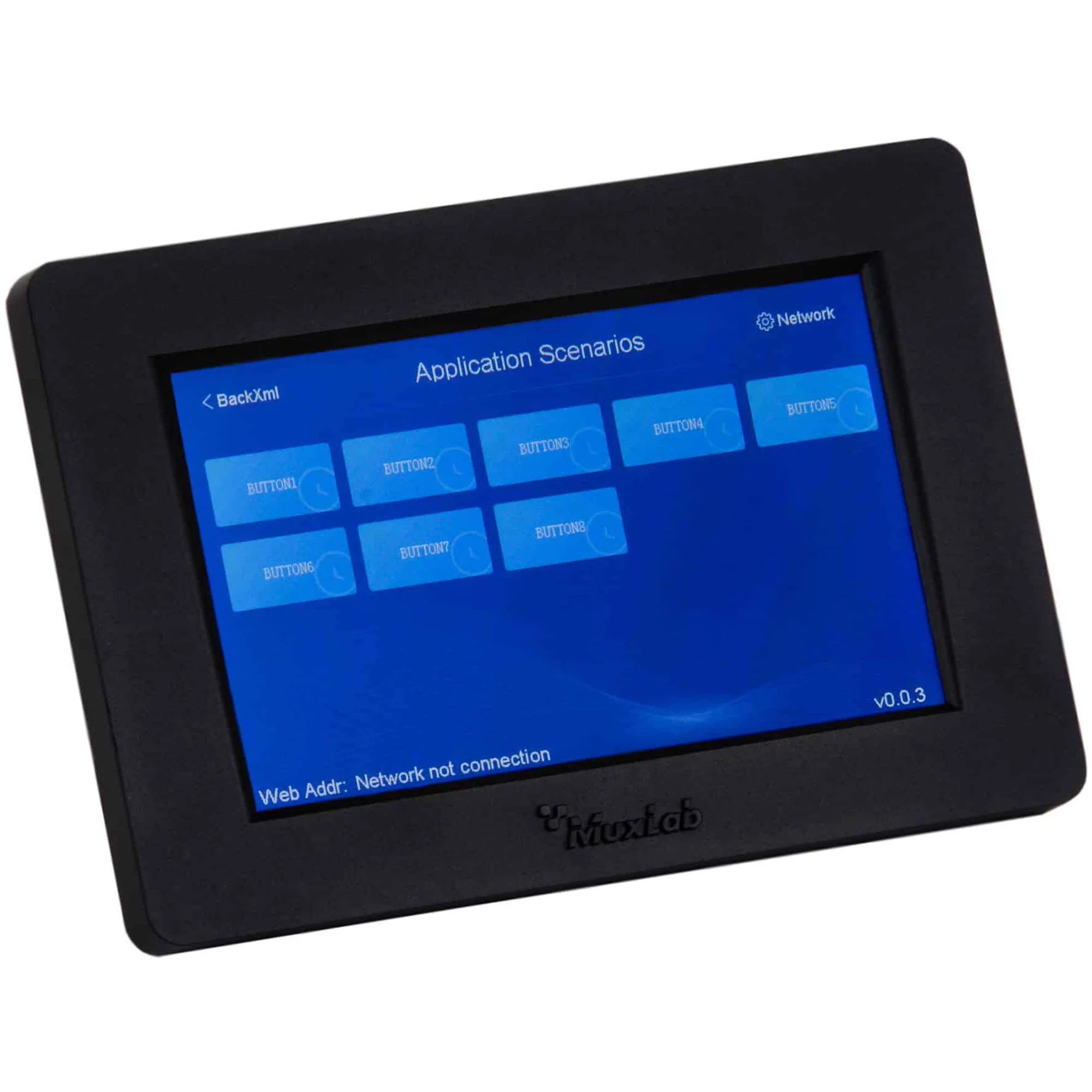

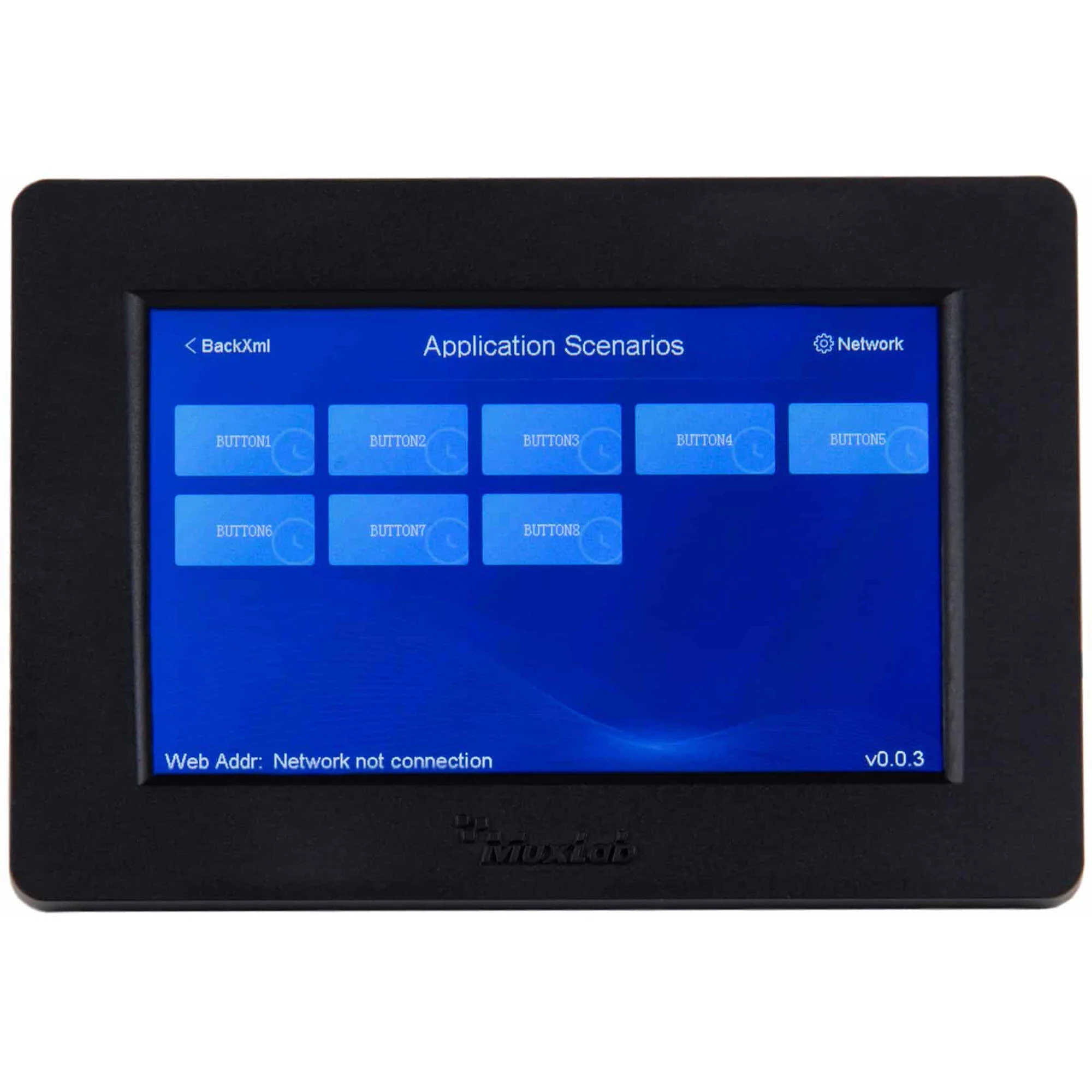

This 5" Touch Control Panel from Muxlab combines the capabilities of an in-wall touch panel with those of an advanced control processor. It works seamlessly with MuxLab devices and third-party products and may be powered via power supply or PoE (Power over Ethernet). The panel boasts a 5� high-resolution color touchscreen display and it can be configured, programmed, and managed via web interface. It offers an RJ45 Ethernet port for TCP/IP, HTTP, UDP, and Telnet, two RS-232 ports, one RS-485 port, one infrared port, two voltage sense ports, and two relay ports for controlling other devices, such as projectors, projector screens, displays, and AV sources.
- 5" LCD panel, 480 x 800 resolution
- Control end devices via TCP/IP, UDP, Telnet, RS-232, IR, and Relay
- Programmable via Web Interface
- Powered using power supply or PoE (Power over Ethernet)
- Supports the addition of various programmable buttons that can be placed on different pages
- Supports one Ethernet port, two RS-232 ports, one RS-485 port, one infrared port, two voltage sense ports, and two relay ports
In the Box
- MuxLab 5" Touch Control Panel with PoE
- Limited 2-Year Manufacturer Warranty
MuxLab 5" PoE Touch Control Panel Specs
| Compatible with |
Compatible with Select MuxLab and Third-Party Products
|
| Panel Type |
LCD
|
| Display Size |
5"
|
| Resolution |
800 x 480
|
| Touchscreen |
Yes
|
| USB I/O |
1 x USB-B Female Input
|
| Other I/O |
Inputs:

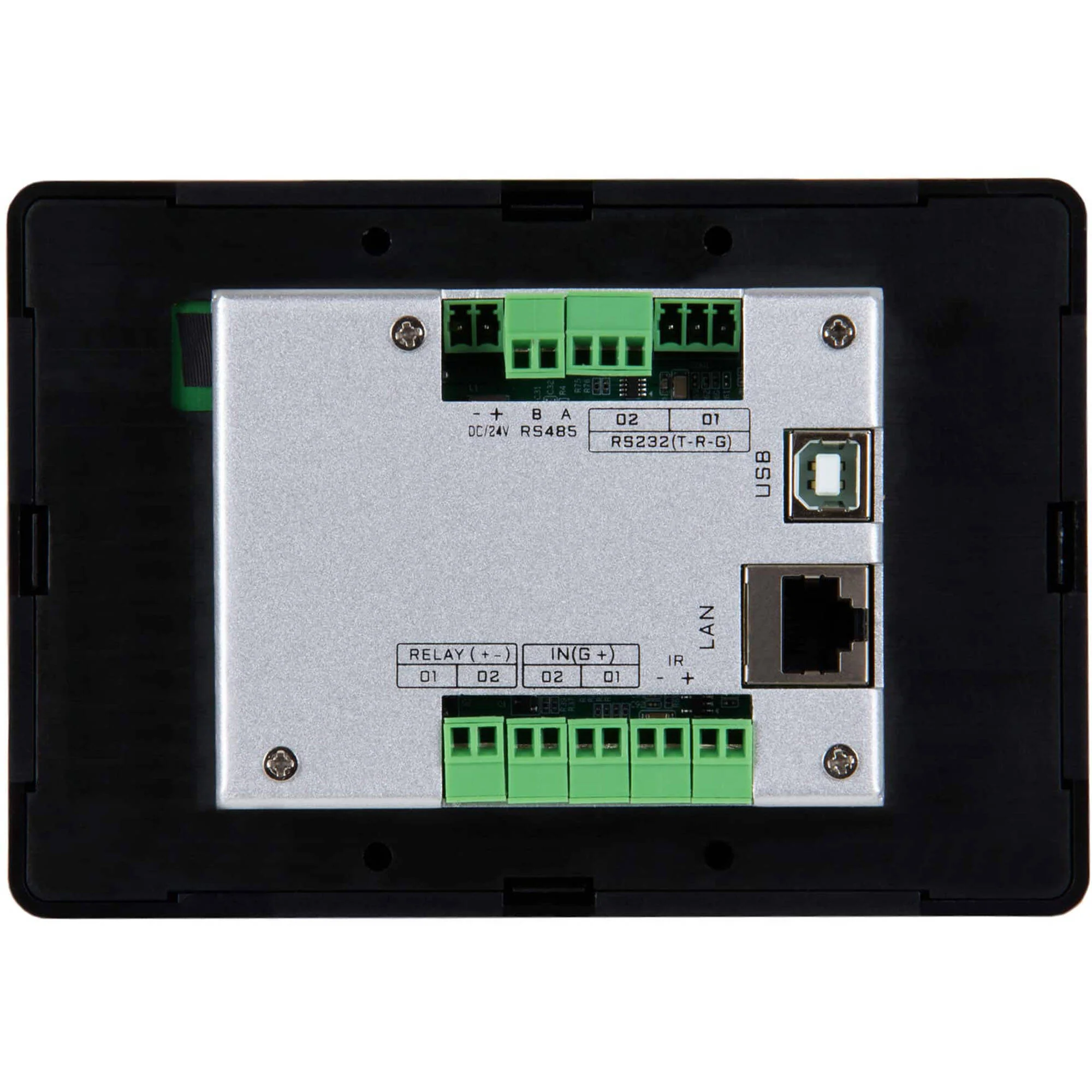

2 x Low-Level Detection Ports 1 x RJ45 Ethernet Port for TCP/IP, Telnet, UDP, and Firmware Upgrade 2 x 3-Pin Block for Serial RS-232 1 x 3-Pin Block for Serial RS-485 1 x 2-Pin Block for IR 2 x 2-Pin Block for Relay 2 x 2-Pin Block for Low Level Detection 1 x 2-Pin Block for Power Outputs: 1 x RJ45 Ethernet for TCP/IP 2 x RS-232 Port 1 x RS-485 Port 1 x IR Emitter Port 2 x Low-Voltage Relay Port |
| Wireless |
Yes
|
| Power Source |
PoE (Built-In)
|
| AC Input Power |
110 to 240 VAC, 50 / 60 Hz
|
| DC Input Power |
24 VDC at 0.5 A
|
| Certifications |
FCC, CE, RoHS
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
20 to 90% ()
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Color |
Black
|
| Material of Construction |
Metal Enclosure
|
| Dimensions |
5.7 x 3.9 x 1.5" / 145 x 100 x 37 mm
|
| Weight |
12.1 oz / 344 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
