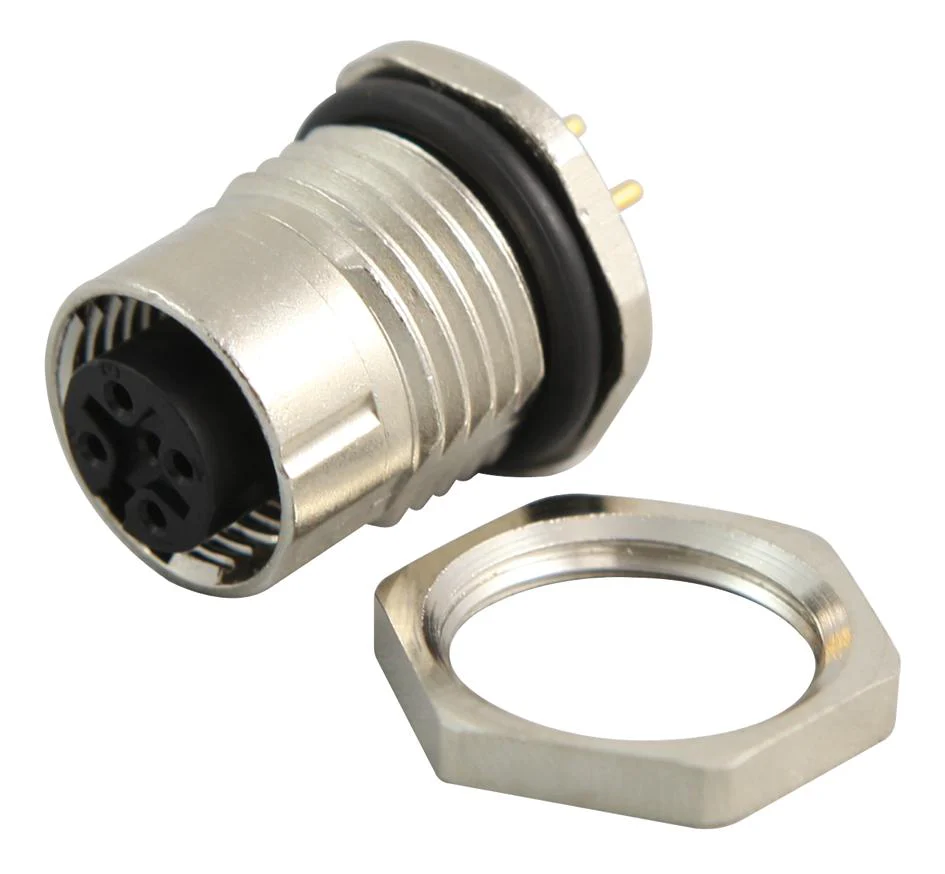

Phoenix Contact SACC-DSI-FS-5CON-L180 SCO SACC-DSI-FS-5CON-L180 SCO Sensor Connector Speedcon Series M12 Female 5 Positions Solder Socket Straight Panel Mount
The SACC-DSI-FS-5CON-L180 SCO is a 5-position A-coded sensor/actuator Flush-type Socket with straight solder connection. It has gold-plated copper zinc alloy contacts and PA 66 (polyamide 66) contact carrier. All standard pin assignments and coding for signal, data and power transmission with uniform design-in design.
- Rear/screw mounting with PG9 thread
- Easy PCB assembly - One-piece connectors for wave soldering
- M12 SPEEDCON fast locking system reduces cabling times
- Nickel-plated zinc die-cast knurls
- 4A Rated current at 40°C
- 60V Rated voltage
- 1.5kV Rated surge voltage
- >=100MR Insulation resistance
- IP67 Protection
Sensing & Instrumentation, Communications & Networking
Other details
| Brand | PHOENIX CONTACT |
| Part Number | SACC-DSI-FS-5CON-L180 SCO |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD Multiple Formats EN | |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$21.50
