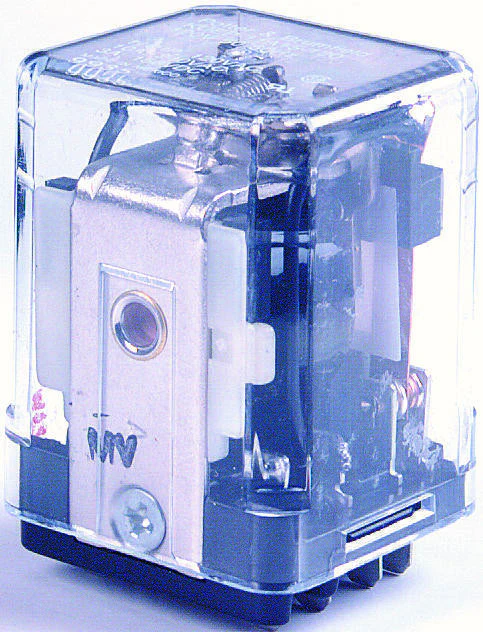

POTTER&BRUMFIELD - TE CONNECTIVITY KUP-14D11-24 RELAY, 3PDT, 240VAC, 28VDC, 5A
This is a RELAY, 3PDT, 240VAC, 28VDC, 5A product from POTTER&BRUMFIELD - TE CONNECTIVITY with the model number KUP-14D11-24
Product details
| Contact Configuration | 3PDT |
| Coil Voltage | 24VDC |
| Contact Current | 5A |
| Product Range | KUP Series |
| Relay Mounting | Socket |
| Coil Type | Non Latching |
| Contact Voltage VAC | 240VAC |
| Relay Terminals | Quick Connect |
| Contact Voltage VDC | 28VDC |
| Contact Material | Silver |
| Coil Resistance | 472ohm |
| Approvals & Standards | CSA, UL |
Other details
| Brand | POTTER&BRUMFIELD - TE CONNECTIVITY |
| Part Number | KUP-14D11-24 |
| Quantity | Each |
| Technical Data Sheet EN |  |
