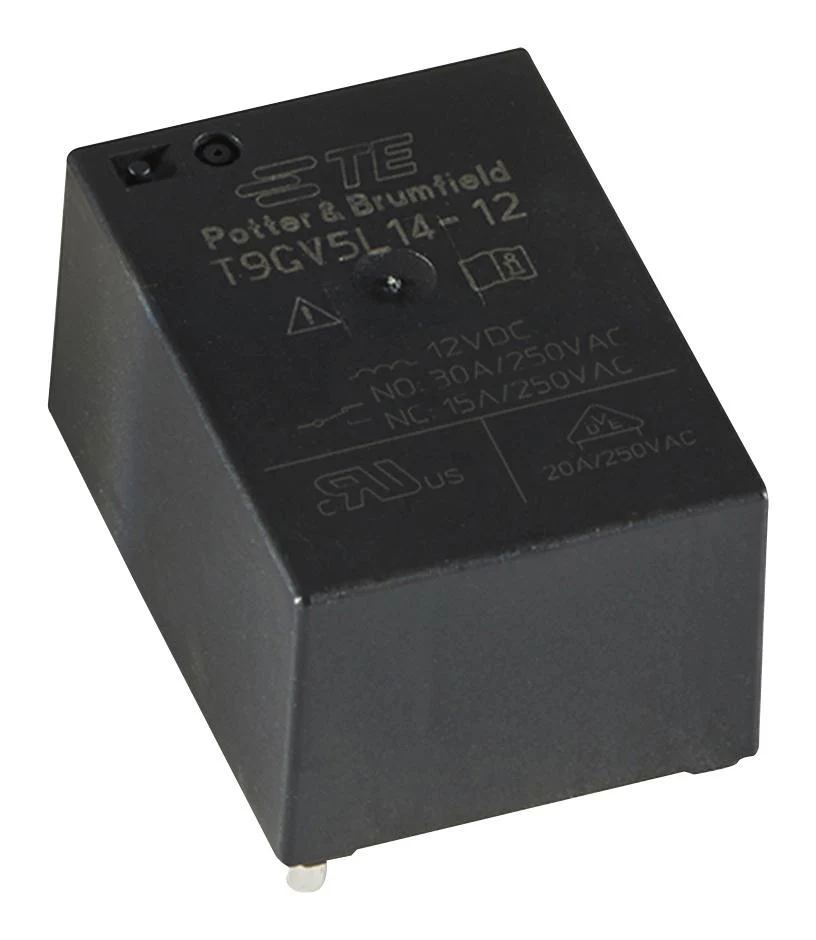

POTTER&BRUMFIELD - TE Connectivity T9GS1L14-12. Power Relay SPST-NO 30A 250VAC THT
This is a POWER RELAY, SPST-NO, 30A, 250VAC, THT product from POTTER&BRUMFIELD - TE CONNECTIVITY with the model number T9GS1L14-12.
Product details
| Contact Configuration | SPST-NO |
| Coil Voltage | 12VDC |
| Contact Current | 30A |
| Product Range | T9G Series |
| Relay Mounting | Through Hole |
| Coil Type | Non Latching |
| Contact Voltage VAC | 250V |
| Relay Terminals | Solder |
| Contact Voltage VDC | - |
| Contact Material | Silver Tin Oxide |
| Coil Resistance | 160ohm |
| Approvals & Standards | IEC, UL, VDE |
Other details
| Brand | POTTER&BRUMFIELD - TE CONNECTIVITY |
| Part Number | T9GS1L14-12. |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Product Page EN | |
