Radiall R142306503 RF / Coaxial Connector BNC Straight Bulkhead Jack Crimp 75 ohm RG179 RG187

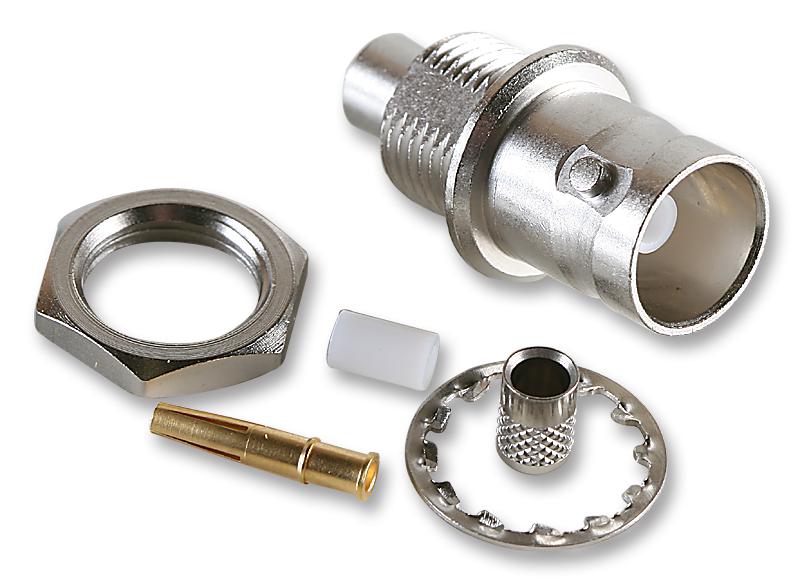

The R142306503 is a bulkhead crimp BNC Straight Jack for use with RG179 and RG187 RF coaxial cables. It has nickel-plated brass body with gold over nickel plated beryllium copper centre contact and a PTFE insulator.
- 5000MR Minimum insulation resistance
- 1000Veff Minimum dielectric withstanding voltage
- 335Veff Maximum voltage rating
- 500-cycle Mating life
- -65 to 165°C Operating temperature range
RF Communications, Industrial
Other details
| Brand | RADIALL |
| Part Number | R142306503 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$3.85
Original: $12.84
-70%Radiall R142306503 RF / Coaxial Connector BNC Straight Bulkhead Jack Crimp 75 ohm RG179 RG187—
$12.84
$3.85Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The R142306503 is a bulkhead crimp BNC Straight Jack for use with RG179 and RG187 RF coaxial cables. It has nickel-plated brass body with gold over nickel plated beryllium copper centre contact and a PTFE insulator.
- 5000MR Minimum insulation resistance
- 1000Veff Minimum dielectric withstanding voltage
- 335Veff Maximum voltage rating
- 500-cycle Mating life
- -65 to 165°C Operating temperature range
RF Communications, Industrial
Other details
| Brand | RADIALL |
| Part Number | R142306503 |
| Quantity | Each |
| Technical Data Sheet EN | |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
