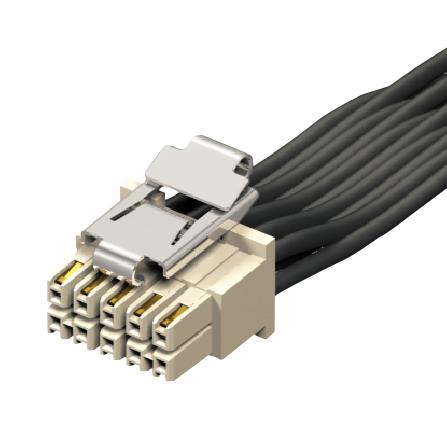

Samtec MMSD-05-20C-L-06.00-S-K MMSD-05-20C-L-06.00-S-K Cable Assembly IDC Receptacle to Free End 10 Ways 2.54 mm 2 Row 152 6 "
The MMSD-05-20C-L-06.00-S-K from Samtec is a MMSD series, 0.100inch (2.54mm) Mini Mate double row discrete wire socket cable assembly. This single ended cable assembly has 10 contacts. It mates with IPL1 (board), MMTD(T), MMTS(T) (cable) series and does not mate with IPT1.
- Double row colour coded PVC cable
- Polarized double row system, UL E111594 recognized
- Nylon 66 insulator material
- Keyed polarization
- Phosphor bronze contact material with 10?" (0.25?m) gold on contact, tin on tail plating
- Wire gauge size is 20AWG
- Voltage rating is 300VAC, current rating per pin is 5.4A
- Operating temperature range from -10?C to +105?C
- Assembled length is 6inch
- Single ended, plastic latch option
Industrial
Other details
| Brand | SAMTEC |
| Part Number | MMSD-05-20C-L-06.00-S-K |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$1.84
Original: $6.14
-70%Samtec MMSD-05-20C-L-06.00-S-K MMSD-05-20C-L-06.00-S-K Cable Assembly IDC Receptacle to Free End 10 Ways 2.54 mm 2 Row 152 6 "—
$6.14
$1.84Product Information
