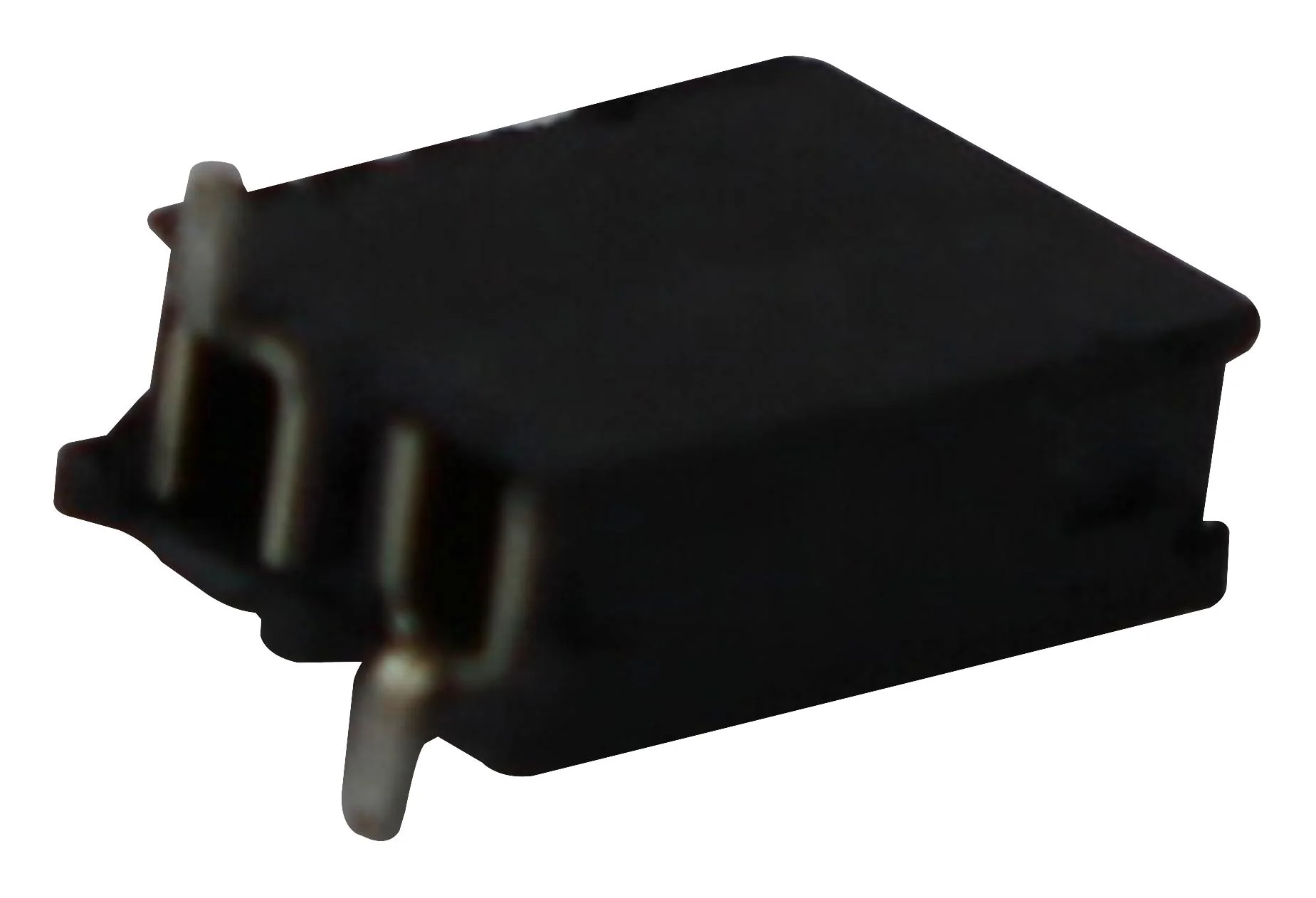

Samtec SSM-110-L-SV PCB Receptacle Board-to-Board 2.54 mm 1 Rows 10 Contacts Surface Mount Tiger Claw SSM
The SSM-110-L-SV is a 10-pole 1-row 2.54mm Tiger Claw� Surface Mount Socket Strip with 10?inch (0.25?m) gold-plated phosphor bronze contacts, matte tin plated tail and LCP insulator. The SSM series vertical pin socket strip is compatible with DW, EW, HHSC, HMTSW, HTSS, HTSW, HW-SM, HW-TH, MTLW, MTSW, TSM, TSS, TSSH, TSW, ZSS and ZW series connectors.
- 5.2A Current rating
- 10mR Contact resistance
- Lead-free solderable
- 405VAC/572VDC Voltage rating
- Black colour
Industrial
Other details
| Brand | SAMTEC |
| Part Number | SSM-110-L-SV |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$3.34
Samtec SSM-110-L-SV PCB Receptacle Board-to-Board 2.54 mm 1 Rows 10 Contacts Surface Mount Tiger Claw SSM—
$3.34
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The SSM-110-L-SV is a 10-pole 1-row 2.54mm Tiger Claw� Surface Mount Socket Strip with 10?inch (0.25?m) gold-plated phosphor bronze contacts, matte tin plated tail and LCP insulator. The SSM series vertical pin socket strip is compatible with DW, EW, HHSC, HMTSW, HTSS, HTSW, HW-SM, HW-TH, MTLW, MTSW, TSM, TSS, TSSH, TSW, ZSS and ZW series connectors.
- 5.2A Current rating
- 10mR Contact resistance
- Lead-free solderable
- 405VAC/572VDC Voltage rating
- Black colour
Industrial
Other details
| Brand | SAMTEC |
| Part Number | SSM-110-L-SV |
| Quantity | Each |
| Technical Data Sheet EN | |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
