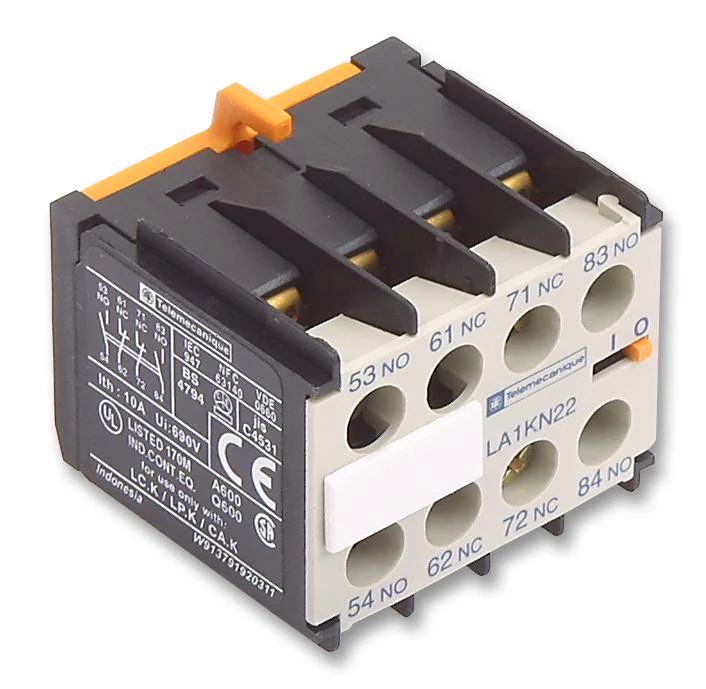

SCHNEIDER ELECTRIC / TELEMECANIQUE LA1KN22 Switch Contact Block, 6 A, TeSys K Contactors, 240 V, 48 V, Screw, 4 Pole
The LA1KN22 is an auxiliary contact block. This auxiliary contact blocks can snap-fit onto the front of 'K' range contactors or control relays.
- 2NO + 2NC contact configuration
- Rated operational voltage of 690VAC
- Minimum switching current of 5mA at 17V
- Screw clamp terminals
- Compliance to UL and CSA standards
- For use with TeSys K contactors
- Instantaneous auxiliary contacts operation
Applications
Industrial, Power Management, Automation & Process Control, Consumer Electronics
Product details
| Contact Voltage DC Max | - |
| Switch Terminals | Screw |
| Product Range | TeSys K |
| For Use With | TeSys K Contactors |
| Contact Current Max | 10A |
| Contact Voltage AC Max | 690VAC |
| No. of Poles | 4 Pole |
Other details
| Brand | SCHNEIDER ELECTRIC / TELEMECANIQUE |
| Part Number | LA1KN22 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
