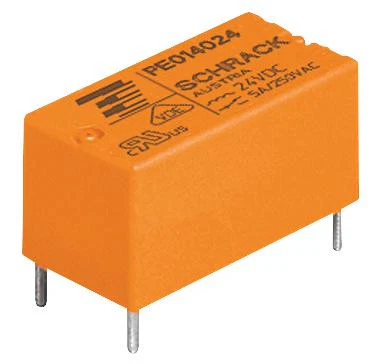

SCHRACK - TE CONNECTIVITY PE014F03 General Purpose Relay, PE bistable Series, Power, Latching Single Coil, SPDT, 3 VDC, 5 A
This is a General Purpose Relay, PE bistable Series, Power, Latching Single Coil, SPDT, 3 VDC, 5 A product from SCHRACK - TE CONNECTIVITY with the model number PE014F03
Product details
| Contact Configuration | SPDT |
| Coil Voltage | 3VDC |
| Contact Current | 5A |
| Product Range | PE bistable Series |
| Relay Mounting | Through Hole |
| Coil Type | Latching Single Coil |
| Contact Voltage VAC | 250VAC |
| Relay Terminals | Solder |
| Contact Voltage VDC | - |
| Contact Material | Silver Nickel |
| Coil Resistance | 41ohm |
| Approvals & Standards | - |
Other details
| Brand | SCHRACK - TE CONNECTIVITY |
| Part Number | PE014F03 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$2.89
Original: $9.63
-70%SCHRACK - TE CONNECTIVITY PE014F03 General Purpose Relay, PE bistable Series, Power, Latching Single Coil, SPDT, 3 VDC, 5 A—
$9.63
$2.89Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This is a General Purpose Relay, PE bistable Series, Power, Latching Single Coil, SPDT, 3 VDC, 5 A product from SCHRACK - TE CONNECTIVITY with the model number PE014F03
Product details
| Contact Configuration | SPDT |
| Coil Voltage | 3VDC |
| Contact Current | 5A |
| Product Range | PE bistable Series |
| Relay Mounting | Through Hole |
| Coil Type | Latching Single Coil |
| Contact Voltage VAC | 250VAC |
| Relay Terminals | Solder |
| Contact Voltage VDC | - |
| Contact Material | Silver Nickel |
| Coil Resistance | 41ohm |
| Approvals & Standards | - |
Other details
| Brand | SCHRACK - TE CONNECTIVITY |
| Part Number | PE014F03 |
| Quantity | Each |
| Technical Data Sheet EN | |
