Seeed Studio 101020018 Sensor Module Grove Water 5 V Supply

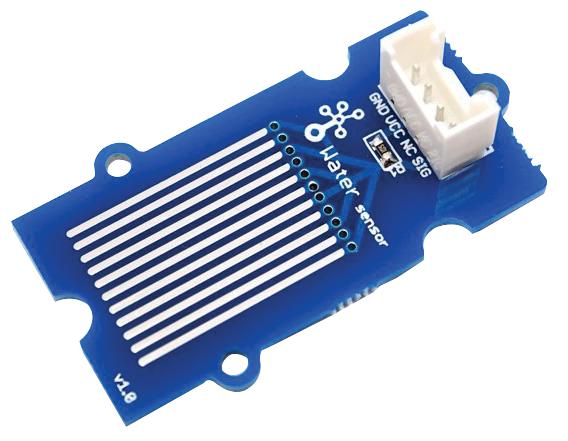

Grove - water sensor detects the presence of water using exposed PCB traces. The sensor is made up of interlaced traces of Ground and Sensor signals. The sensor traces are weakly pulled up using 1 MR resistor. The resistor will pull the sensor trace value high until a drop of water shorts the sensor trace to the ground trace. This circuit will work with digital I/O pins of Arduino or you can use it with the analogue pins to detect the amount of water induced contact between the grounded and sensor traces.
- Grove compatible interface
- Low power consumption
- High sensitivity
- Dimension is 40mm x 20mm x 12mm
- Concise design 5V working voltage
1 x grove - water sensor, 1 x grove cable.
Other details
| Brand | SEEED STUDIO |
| Part Number | 101020018 |
| Quantity | Each |
| Manufacturer Product Page EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$1.27
Original: $4.22
-70%Seeed Studio 101020018 Sensor Module Grove Water 5 V Supply—
$4.22
$1.27Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Grove - water sensor detects the presence of water using exposed PCB traces. The sensor is made up of interlaced traces of Ground and Sensor signals. The sensor traces are weakly pulled up using 1 MR resistor. The resistor will pull the sensor trace value high until a drop of water shorts the sensor trace to the ground trace. This circuit will work with digital I/O pins of Arduino or you can use it with the analogue pins to detect the amount of water induced contact between the grounded and sensor traces.
- Grove compatible interface
- Low power consumption
- High sensitivity
- Dimension is 40mm x 20mm x 12mm
- Concise design 5V working voltage
1 x grove - water sensor, 1 x grove cable.
Other details
| Brand | SEEED STUDIO |
| Part Number | 101020018 |
| Quantity | Each |
| Manufacturer Product Page EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
