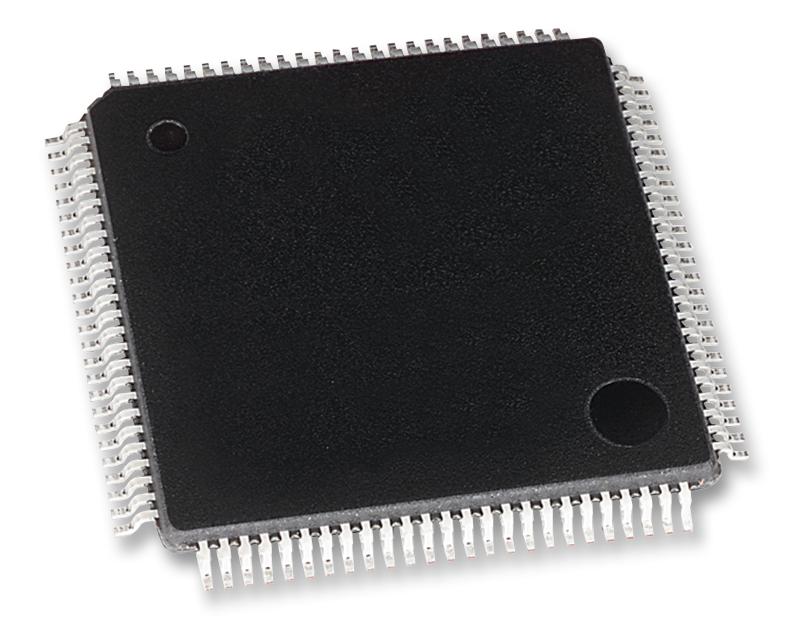

STMICROELECTRONICS SPC58EC80E3QMC1X 32 Bit Microcontroller, SPC5 Family SPC58ECx Series Microcontrollers, Power Architecture, 32 bit
SPC58EC80E3QMC1X is a SPC58 C line - 32bit power architecture automotive MCU. It introduces new features coupled with higher throughput to provide a substantial reduction of cost per feature and significant power and performance improvement (MIPS per mW). It features dual phase-locked loops with a stable clock domain for peripherals and FM modulation domain for the computational shell. The 4224KB (4096KB code flash + 128KB data flash) on-chip flash memory supports read during program and erase operations, and multiple blocks allowing EEPROM emulation.
- AEC-Q100 qualified
- High-performance e200z420n3 dual-core, 32bit power architecture technology CPU
- Multi-channel direct memory access controller (eDMA) with 64 channels, 1 interrupt controller (INTC)
- Comprehensive new generation ASIL-B safety concept, ASIL-B of ISO 26262
- Enhanced modular IO subsystem (eMIOS): up to 64 timed I/O channels with 16-bit counter resolution
- Enhanced analogue-to-digital converter system with 3 independent fast 12-bit SAR analogue converters
- Communication interfaces, 18 LINFlexD modules, 8 deserial serial peripheral interface (DSPI) modules
- Versatile low-power modes, ultra-low-power standby with RTC, fast wakeup schemes
- eTQFP100 package, 180MHz at 125°C frequency
- Junction temperature range from -40°C to 150°C
Product details
| Product Range: SPC5 Family SPC58ECx Series Microcontrollers |
| Device Core: Power Architecture |
| Data Bus Width: 32 bit |
| Operating Frequency Max: 180MHz |
| Program Memory Size: 4MB |
| No. of Pins: 100Pins |
| IC Case / Package: TQFP-EP |
| No. of I/O's: 78I/O's |
| Interfaces: CAN, DSPI, Ethernet, FlexRay, I2C, LIN, UART |
| RAM Memory Size: 512KB |
| ADC Channels: 5Channels |
| ADC Resolution: 10Bit, 12Bit |
| Supply Voltage Min: 3V |
| Supply Voltage Max: 5.5V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 125°C |
| IC Mounting: Surface Mount |
| MCU Family: SPC58 |
| MCU Series: SPC58ECx |
| Qualification: AEC-Q100 |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | SPC58EC80E3QMC1X |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
