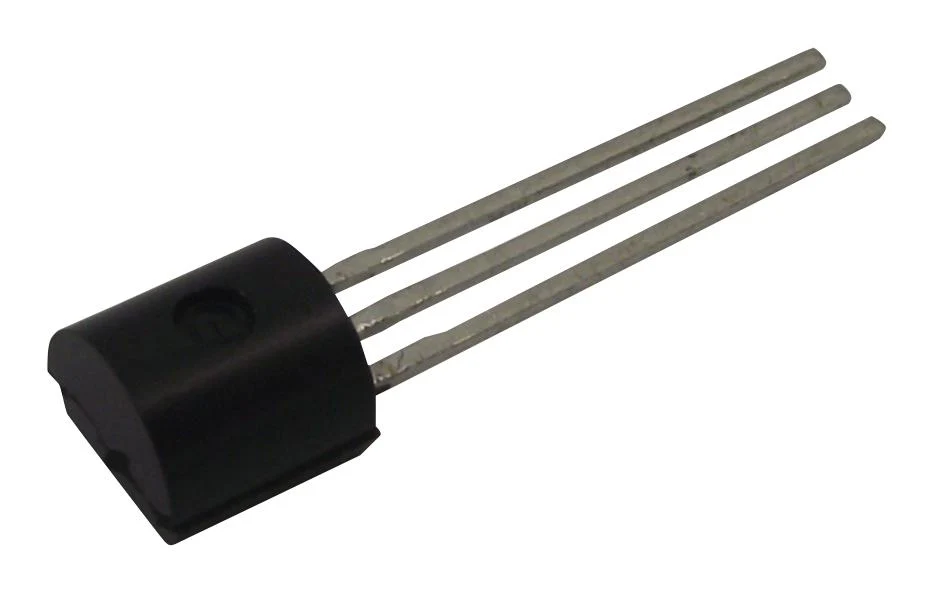

Texas Instruments LM19CIZ/NOPB Temperature Sensor IC Voltage ± 2.5°C -55 °C +130 TO-92 3 Pins
The LM19CIZ/NOPB is an analog output CMOS Temperature Sensor operates over a -55 to +130°C temperature range. The power supply operating range is +2.4 to +5.5V. The transfer function of LM19CIZ/NOPB is predominately linear, yet has a slight predictable parabolic curvature. The accuracy of the sensor when specified to a parabolic transfer function is ±2.5°C at an ambient temperature of +30°C. The temperature error increases linearly and reaches a maximum of ±3.8°C at the temperature range extremes. The temperature range is affected by the power supply voltage. At a power supply voltage of 2.7 to 5.5V the temperature range extremes are +130°C and -55°C. Decreasing the power supply voltage to 2.4V changes the negative extreme to -30°C, while the positive remains at +130°C. The LM19CIZ/NOPB quiescent current is less than 10µA. Therefore, self-heating is less than 0.02°C in still air.
- Predictable curvature error
- UL recognized component
- 10µA Maximum drain current
- ±0.4% Typical nonlinearity
- 160R Maximum output impedance
- Green product and no Sb/Br
Industrial, Power Management, Computers & Computer Peripherals, Sensing & Instrumentation
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | LM19CIZ/NOPB |
| Quantity | Each (Supplied on Cut Tape) |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$1.41
