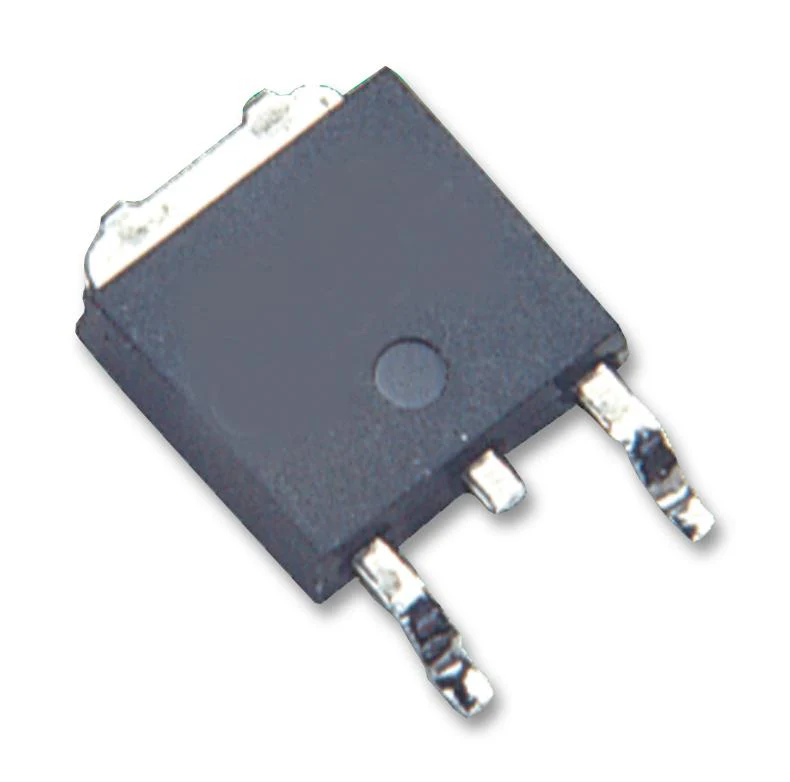

TEXAS INSTRUMENTS LM317KTTR Linear Voltage Regulator, Adjustable, 40V primary input, 1.25V to 37V/1.5A/1 Output, TO-263-3
The LM317KTTR is a 3-terminal adjustable Positive Voltage Regulator capable of supplying more than 1.5A over an output-voltage range of 1.25V to 37V. It requires only two external resistors to set the output voltage. This voltage regulator features a typical line regulation of 0.01% and typical load regulation of 0.1%. It includes current limiting, thermal overload protection and safe operating area protection. Overload protection remains functional even if the ADJUST terminal is disconnected.
- Internal short-circuit current limit
- Thermal overload protection
- Output safe-area compensation
- Green product and no Sb/Br
Applications
Power Management, Consumer Electronics, Automotive, HVAC, Communications & Networking
Product details
| Output Type: Adjustable |
| No. of Outputs: 1Outputs |
| Output Voltage Nom: - |
| Output Voltage Min: 1.25V |
| Output Voltage Max: 37V |
| Input Voltage Min: 3V |
| Input Voltage Max: 40V |
| Product Range: - |
| Output Current Max: 1.5A |
| IC Case / Package: TO-263 (D2PAK) |
| No. of Pins: 3Pins |
| IC Mounting: Surface Mount |
| Operating Temperature Min: 0°C |
| Operating Temperature Max: 125°C |
| Qualification: - |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | LM317KTTR |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$1.96
